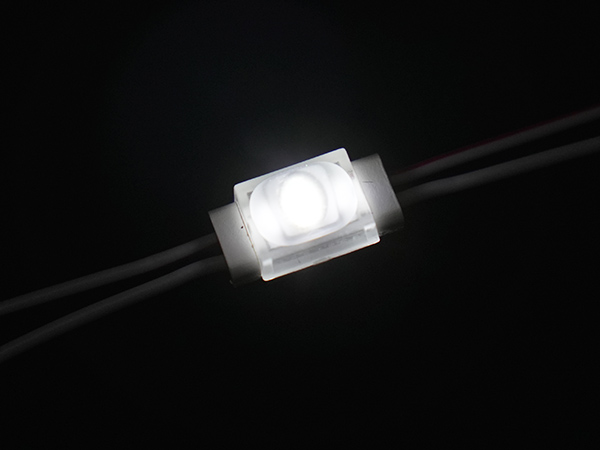

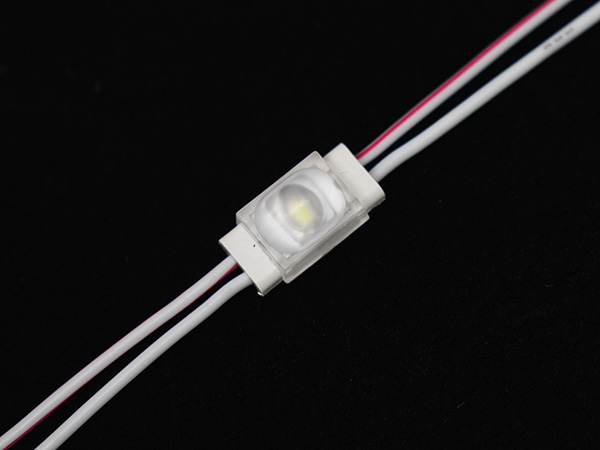

Mini Backlit Channel Letter Lighting LED Module
  • Mini Backlit Channel Letter Lighting LED Module
  • Mini Backlit Channel Letter Lighting LED Module
Mini Backlit Channel Letter Lighting LED Module
Mini Backlit Channel Letter Lighting LED Module

Mini Backlit Channel Letter Lighting LED Module

Compact lighting solutions that have been designed for diverse applications are mini LED module. They ensure various lighting designs can be achieved by offering some level of intricacy because they are small and versatile. Mini LED modules are perfect for signages, displays as well as accent lighting;
  • Product Information

Mini Backlit Channel Letter Lighting LED Module

Compact lighting solutions that have been designed for diverse applications are mini led module. They ensure various lighting designs can be achieved by offering some level of intricacy because they are small and versatile. Mini led modules are perfect for signages, displays as well as accent lighting; hence they provide intense and effective lighting. These features as; less power consumption and easy installation render it more advantageous and realistic while one is using them in open air or enclosed buildings. You will be able to uplift your illumination projects with the help of mini LED modules which are space saving and at the same time dynamic in nature. For Seiko word mini world it is ideal.

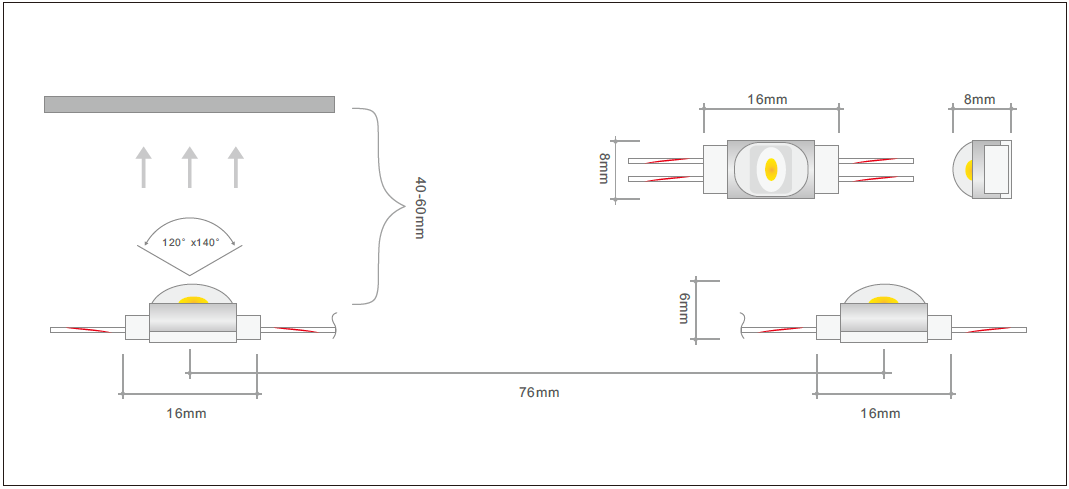

Mini LED Module Size Drawing:


Mini LED Module Specifications:

ManufacturerMengHaoPiece Weight0.002
Country Of OriginChinaSize16*8mm
Lamp Bead Type3030Center Distance76mm
Lamp Bead Amount1PCSBead Distance/
Level Of ProtectionIP65Wire Length70mm
Luminance48lmLinear Diameter0.52mm
Brightness Per Watt120lmEach String/One20
Power0.4WGuarantee Period3 Years
Irritation Angle120°*140°Case/Weight23.8kg
ColourW/CWCarton Size51*36*31CM
Color Temperature2800-15000KLumen Depreciation<6%
Wire Diameter0.22mm²Life Time50000

Advantages of Mini LED Module

  1. Compact Size: Micro LED modules are small and compact, making them ideal for areas with limited or limited space. Any time you come across the word ‘small’, it means that you can place anywhere in your lighting fixtures and signs.

  2. Energy Efficiency: Mini LED modules are highly energy-saving, so they consume very little electricity compared to other traditional lighting sources such as incandescent lamps, i.e. light bulbs that use filaments and fluorescent tubes. This reduces the energy consumption of the electricity supply and reduces carbon emissions.

  3. Long lifespan: Mini LED modules have a typical lifespan; however, they can continue to operate for tens of thousands of hours. As a result, this minimizes the number of replacements needed and maintenance costs thereby remain cheap in future.

  4. Brightness and Visibility: Although mini led module is very small size but it can emit bright lights on evenly any given area as such it belongs to many different types of light sources. Whether it is accent lighting, task lighting or signage lighting; always with the same brightness and increased visibility for all uses, these devices play an important role in providing a more aesthetically pleasing appearance indoors or outdoors.

  5. Customizable Design: With tiny LEDs taking forms like square ones as well as rectangulars round etc., one’s creativity may freely take its course to achieve specific outcomes; this option is also useful for him/her In respect to aesthetics satisfying personal preferences. They allow us to attach them at virtually any point within a luminaire sign significantly expanding our possibilities with regard to lightning design choices.

  6. Instant On/Off: Small size LEDs light up immediately when switched on; there is no need for warming up at all. Therefore what people should know before deciding upon switching on/off lightning systems is not wandering about among different places but having consistent illumination whatever environment atmosphere exists around us.

  7. Dimmability: Most of the Mini LED modules are dimmable; therefore, this gives people the opportunity to adjust intensity level of the light emitted by these sources according to their own taste or any other specific circumstances. This is especially relevant, for instance in home or hotel where it is necessary to create several levels of lighting at once.

  8. Durability: Mini LED modules are ruggedly constructed and resistant to shock, vibration and high temperatures, making them less likely to break. Additionally, they can withstand greater stress from frequent switching on and off and rough treatment than other products used outside commercial buildings and industrial sites.

  9. Environmentally friendly: Mini LED modules contain no mercury and emit very little heat during operation. Besides, they can still be used even after their service life ends thereby helping to keep the environment clean as well as cutting down waste generation.

Application of Mini LED Module

  • Signage lighting: Mini LED modules are commonly used for backlighting signage, channel letters and logos. It’s easily installed in very small spaces due to its compact size or it can be incorporated into complex designs so that brighter and more uniform light improves visibility of outdoor or indoor signages.

  • Retail display lighting: The use of micro LED modules in retail displays, shelves, showcases helps draw attention to product effects. They provide sharp and focused illumination that highlights product details, which then directs customers’ eyes onto the featured items found within stores, boutiques or showrooms.

  • Cabinet and shelf lighting: Micro LED modules produce task lights embedded inside cabinets, shelves, and display cases that also accentuate objects inside them. Ideal for home uses such as gallery or museum collections like glassware or decorative materials as they have a low profile plus energy efficiency.

  • Under-cabinet lighting: In places such kitchens, bathrooms workshops with cabinets for example mini LED modules can be very useful. They are easier to install due to their small dimensions while adhesive backing enables them to be correctly used for providing countertop task lightings and improving visible areas out of the reach of ceiling fixtures.

  • Accent and bay lighting: This kind of light fixture is able to create depth within residential-commercial spaces by diffusing light thereby emphasizing different architectural aspects through mini LED modules integrated into architectural structures like bay niches.

  • Automotive lighting: Mini LED modules are used in various automotive component combinations including interior lighting systems like instrument panel backlighting; door handle lights accent lights among others because they consume less power because they are miniature.

  • DIY Projects: Small-sized micro LED modules are also widely used in DIY projects when people want components that can be applied towards creating personalized illumination solutions (e.g., model displays; art installations) with respect to their space requirements Multi-functionality Sex

  • Event and stage lighting: More dynamic illumination results from applying Mini LED Modules on event lighting, stage backgrounds or concert productions. They have the ability to change color and can also be timed with music, or choreographed to create complex light movements thus enhancing the visuals of theatrical performances, festivals and concerts.

  • Safety and emergency lighting: Safety lighting such as emergency exit signs, passage markings and evacuation route lighting can be created from mini LED modules. This ensures that people do not trip during a blackout or any other type of an emergency situation by providing reliable source of light.

  • Electronic displays: Various brands use mini LED modules in different electronic displays including scoreboards, information boards, digital signage etc. The small size of this tiny device emanates intense lighting which produces colorful display useful for advertising purposes as well as conveying important messages while at the same time entertaining the viewer.

Mini LED Module FAQ

What is Mini LED module?

Mini LED modules are small lighting units that integrate light-emitting diodes (LEDs) onto compact circuit boards and are commonly used in a variety of lighting applications.

How does Mini LED module work?

The working principle of the Mini LED module is to convert electrical energy into light through the movement of electrons within semiconductor materials, thereby producing lighting.

What types of lights are available with Mini LED modules?

Mini LED modules are available in a variety of colors, including white (warm, neutral or cool), RGB (red, green, blue) as well as single color options such as red, green, blue or amber.

Can Mini LED modules be dimmed?

Yes, many Mini LED modules are dimmable, allowing users to adjust brightness levels to create different lighting effects or meet specific lighting needs.

Can Mini LED modules be used outdoors?

Yes, some Mini LED modules are designed to be waterproof or weather-resistant, making them suitable for outdoor applications such as landscape lighting or outdoor signage.

How to supply power to Mini LED module?

Mini LED modules are typically powered by a low-voltage DC power source, such as an LED driver or power supply, ranging from 12V to 24V, depending on the module specification.

Do Mini LED modules need heat sinks?

Some high-power Mini LED modules may require a heat sink or thermal management solution to effectively dissipate heat and ensure optimal performance and longevity.

Is Mini LED module easy to install?

Yes, the mini LED modules are designed for easy installation, with options for adhesive backing, screw mounting or snap-in mounting depending on the application.
