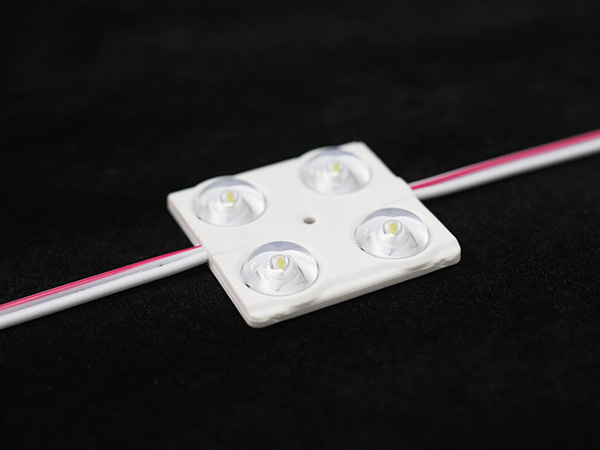

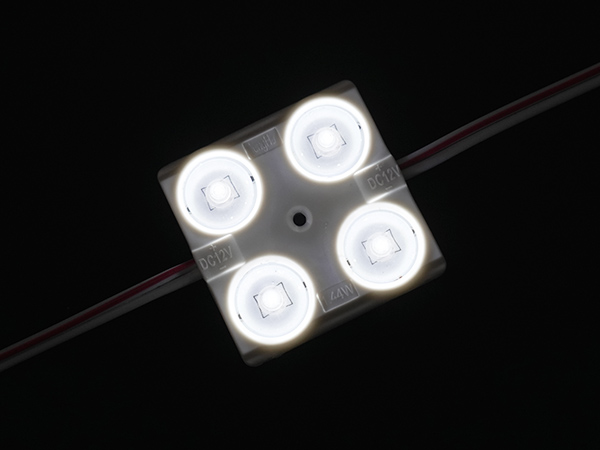

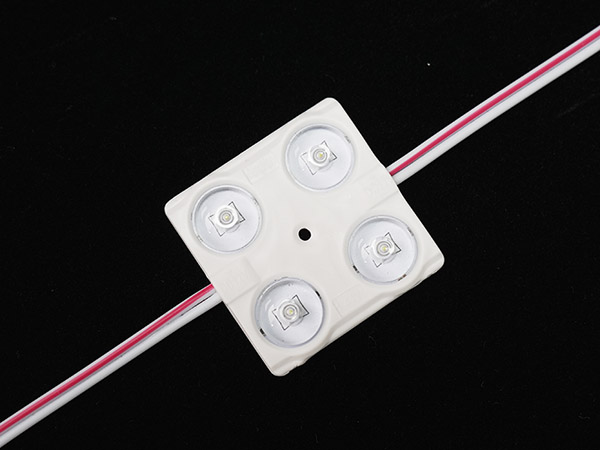

The 12V LED Module is an advanced component designed for the manufacturing of high-quality LED lighting products. This module is a crucial part of the LED assembly process, contributing to the overall performance, durability, and efficiency of the final lighting solution. Key features of the LED high-end injection molding module include precision molding technology, which ensures accurate and consistent shaping of intricate parts. The module is crafted with high-quality materials to enhance heat dissipation, thereby promoting the longevity of the LED system. It is suitable for light box with side height of 10cm-18cm.
| Model | MH-M4 | Moq | 200 |
| Manufacturer | MengHao | Piece Weight | 0.01 |

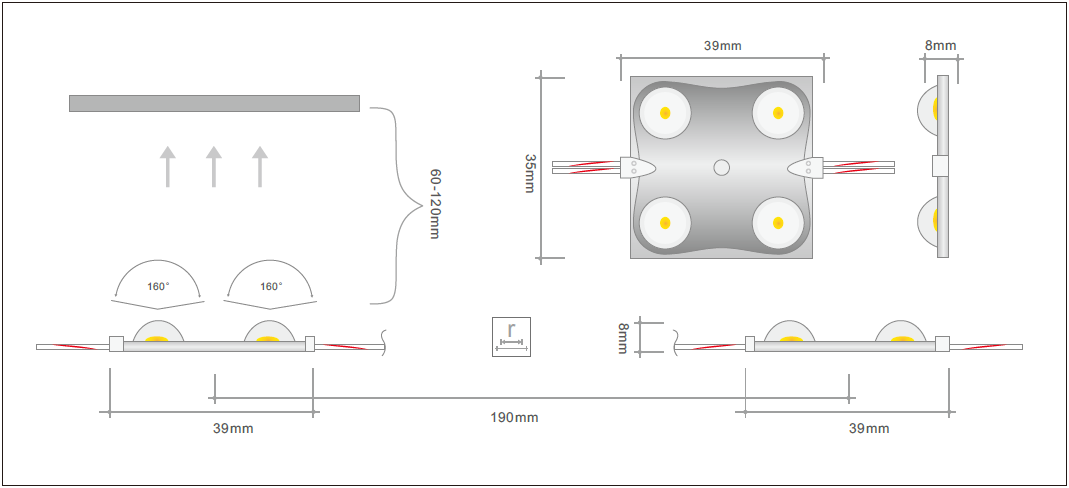

| Country Of Origin | China | Size | 39*39mm |
| Lamp Bead Type | 3030 | Center Distance | 190mm |
| Lamp Bead Amount | 4PCS | Bead Distance | 20mm |
| Level Of Protection | IP65 | Wire Length | 165mm |
| Luminance | 300lm | Linear Diameter | 0.57mm |
| Brightness Per Watt | 150lm | Each String/One | 20 |
| Voltage | 12V | Package/Piece | 100 |
| Power | 2W | Guarantee Period | 3 Years |
| Illuminance | 6500 | Cases/PCS | 2000 |
| Irritation Angle | 170° | Case/Weight | 23.8kg |
| Colour | W/CW | Carton Size | 51*36*31CM |
| Color Temperature | 2800-15000K | Lumen Depreciation | <6% |
| Wire Diameter | 0.26mm² | Life Time | 50000 |
