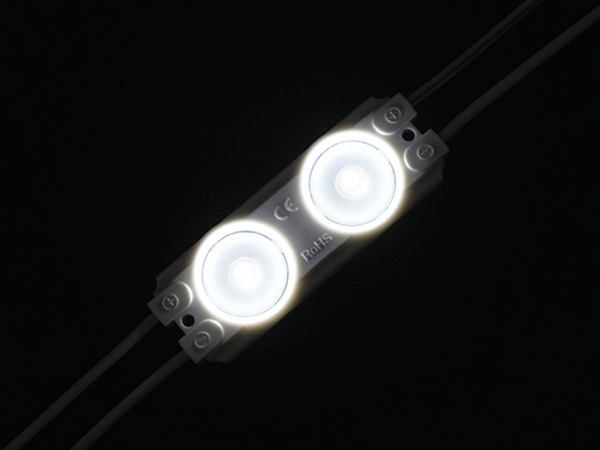

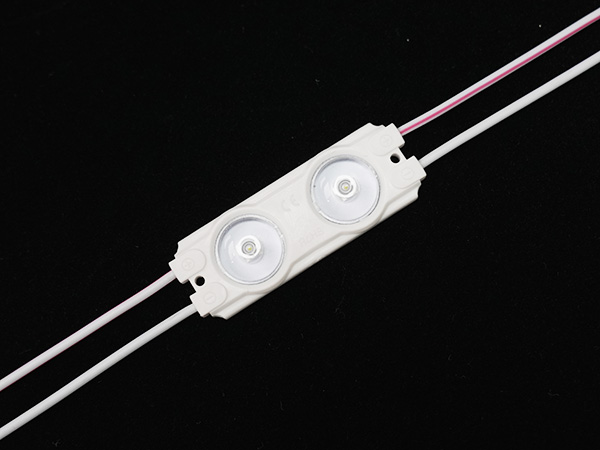

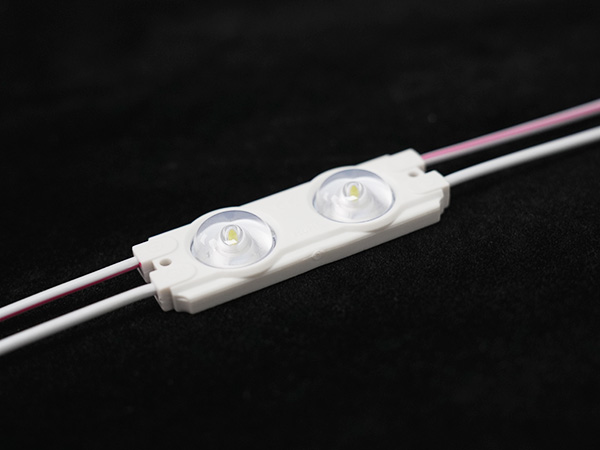

The injection LED signs module is one of the components that are used in making illuminated signs. The China Injection LED Signs Module Manufacturer uses advanced injection molding technology to incorporate light-emitting diodes into sign constructions; thus ensuring uniform brightness as well as a vigorous display. It has a modular construction that allows for simple fixing and maintaining, which makes it perfect for signage purposes in the retail, hotel and advertising industries. This injection module is visually appealing and highly visible due to its efficiency and tough nature. It can be used on light boxes with side heights between 4cm-12cm.
| Model | MH-M2 | Moq | 200 |
| Manufacturer | MengHao | Piece Weight | 0.007 |

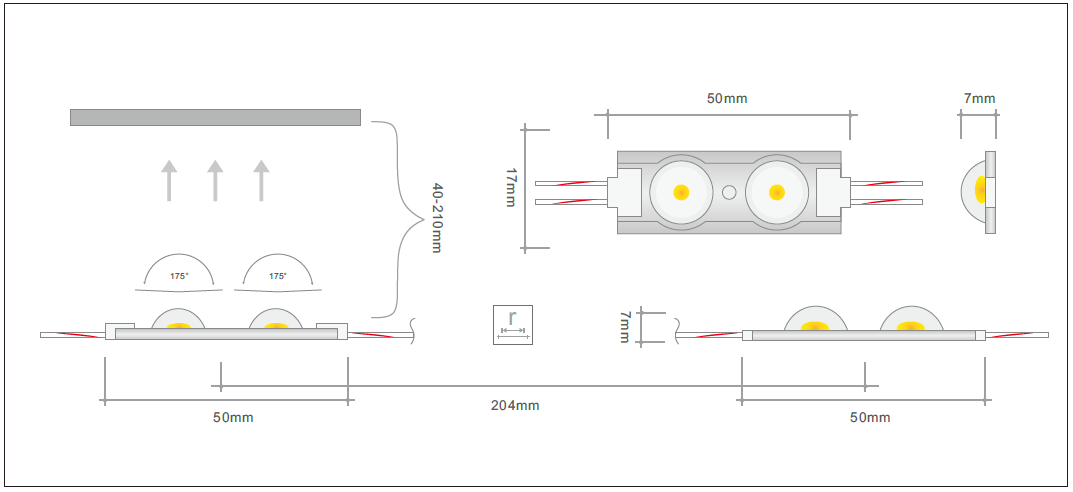

| Country Of Origin | China | Size | 50*17mm |
| Lamp Bead Type | 3030 | Center Distance | 204mm |
| Lamp Bead Amount | 2PCS | Bead Distance | 20mm |
| Level Of Protection | IP65 | Wire Length | 155mm |
| Luminance | 130lm | Linear Diameter | 0.57mm |
| Brightness Per Watt | 130lm | Each String/One | 20 |
| Voltage | 12V | Package/Piece | 200 |
| Power | 1W | Guarantee Period | 3 Years |
| Illuminance | 4550 | Cases/PCS | 3000 |
| Irritation Angle | 170° | Case/Weight | 24kg |
| Colour | W/CW | Carton Size | 51*36*29.5CM |
| Color Temperature | 2800-15000K | Lumen Depreciation | <6% |
| Wire Diameter | 0.26mm² | Life Time | 50000 |
Consistent Brightness: Integrated LEDs guarantee uniform and identical lighting to the sign, thus improving its visibility and readability.
Colorful Displays: The advanced technology of injection molding enables accurate positioning of LED lights, which make signs very attractive and striking.
Divided into modules: This facilitates easy installation as well as maintenance thereby reducing downtime and operational costs.
Designed for Long-term Operation: Constructed for long lasting use, the module is sturdy and protected from weather elements hence ensuring dependable output.
Universal Signage Fitment: This accommodates a wide range of signage applications such as retailing, hospitality or even promotional messages hence meeting diverse display demands.
Retail Signage: A Shopping Centre Displaying Its Products and Services These devices are usually mounted on light boxes, channel letters, and other forms of signs to attract customers and improve visibility.
Hospitality: Hotels Decoration as well as Restaurants . For instance, the modules facilitate clear viewability of information that easily creates a warm atmosphere.
Advertising: They are ideal for outdoor billboards/ transit shelters/ digital signage applications where durability and visibility are paramount. These modules stand against different weather conditions and provide impactful advertising with their brilliant displays that draw attention.
Corporate Environments: Interiors in Office Buildings Including Digital Displays Here, the modules do professional lighting and help to achieve an upscale look.
Public Spaces: Airports’ Informational And Safety Signs . These modules make sure important data is shared effectively even in such environments filled with dynamic changes witnessed by large groups of people.
Vehicle Signage: Inside Vehicle Brandings Like Taxi Ads Especially buses, taxis or commercial trucks have exterior and interior branding. They offer visibility on the move thus making mobile advertising effective.
Exhibitions and Events: Trade Shows Banners that Stand The Rigors of Travel This way the module can be used anywhere including when setting up trade shows as well as temporary displays at events.
The module consists of LEDs embedded within a durable housing made from injection molding. When electricity is passed through it, the LEDs emit light, providing illumination for the sign. The module design ensures efficient light distribution and durability.
Installation typically involves mounting the module within a sign structure, such as a light box, channel letter, or display panel. They are designed for easy integration and can be secured using screw or adhesive methods depending on the application.
Modules are available in a variety of sizes and configurations to meet different sign requirements. They can be customized to specific sizes and design preferences, ensuring application flexibility.
Yes, these modules are designed to withstand a variety of weather conditions, making them suitable for both indoor and outdoor use. They are typically waterproof and dust and moisture resistant.
The lifespan of an LED module depends on usage and environmental conditions. Generally speaking, they are durable and typically have a lifespan of 50,000 to 100,000 hours.
Yes, these modules can be customized in size, shape, color temperature, and brightness to meet specific sign requirements. Customization options allow for tailored solutions for different applications.
Maintenance typically includes regular cleaning to remove dirt and debris from the sign surface and ensure the LEDs are functioning properly. If any failures occur, individual modules can be easily replaced due to the modular design.
