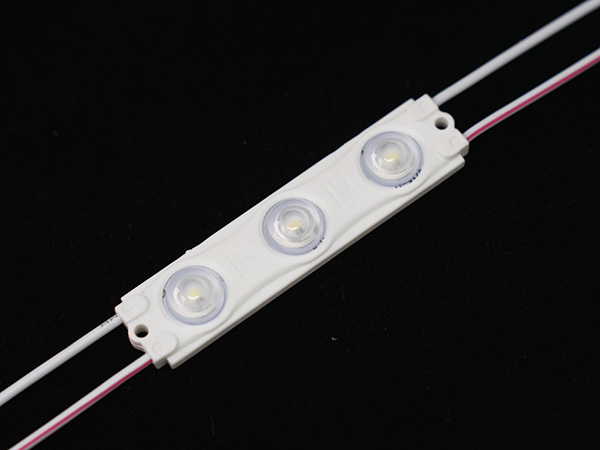

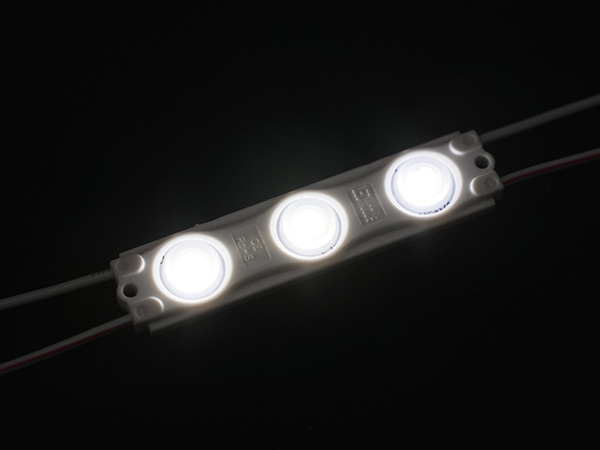

The led sign module is compact and efficient lighting components which are intended for use in signage. These China LED Sign Module Manufacturer modules employ modern LED technology to provide bright and uniform illumination that guarantees captivating exhibitions. The modular design of the LED sign module makes it easy to install and provides flexibility for creating visually attractive signs in different environments. They consume less energy and last longer thus making them a cost-saving choice for companies, advertisers or anyone who wants to increase its business visibility effectively using illuminated signage. It is ideal for use on light box with side height ranging from 4cm-10cm.
| Model | MH-A3 | Moq | 200 |
| Manufacturer | MengHao | Piece Weight | 0.008 |

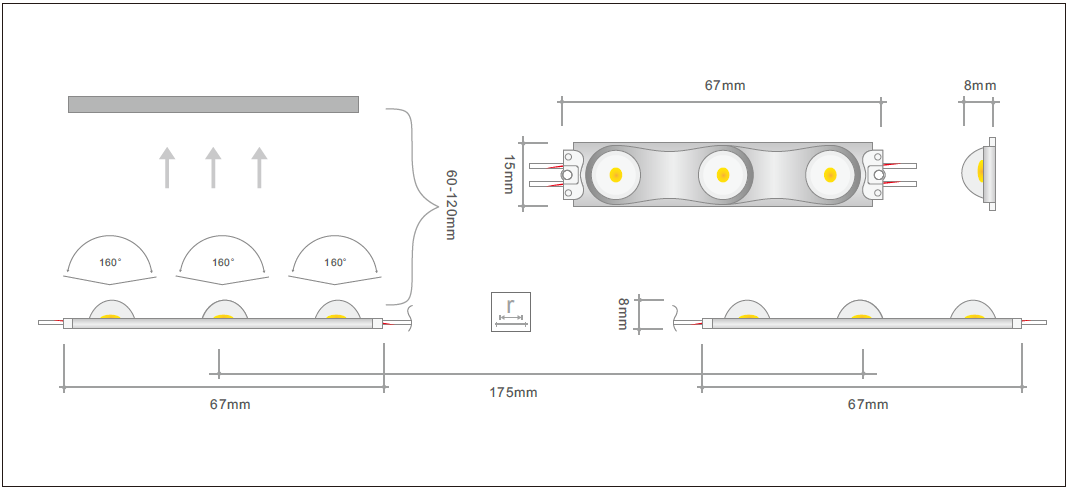

| Country Of Origin | China | Size | 67*15mm |
| Lamp Bead Type | 2835 | Center Distance | 175mm |
| Lamp Bead Amount | 3PCS | Bead Distance | 21mm |
| Level Of Protection | IP65 | Wire Length | 108mm |
| Luminance | 110lm | Linear Diameter | 0.48mm |
| Brightness Per Watt | 110lm | Each String/One | 20 |
| Voltage | 12V | Package/Piece | 200 |
| Power | 0.8W | Guarantee Period | 3 Years |
| Illuminance | 3300 | Cases/PCS | 2000 |
| Irritation Angle | 165° | Case/Weight | 24.8kg |
| Colour | W/CW | Carton Size | 51*36*31CM |
| Color Temperature | 2800-15000K | Lumen Depreciation | <6% |
| Wire Diameter | 0.185mm² | Life Time | 50000 |
Energy Efficiency: In fact, the LED sign modules are noted for their high energy saving capacity compared to other lighting sources such as fluorescent or incandescent bulbs. As a result, individuals can save on power costs in addition to reducing their carbon footprints by minimizing their electricity usage.
Long Lifespan: Normally, these modules have an operating life of tens of thousands of hours (often more than 50,000). The long life cycle reduces costs associated with servicing as well as the frequency of replacing lights that would have been needed if old lighting options were used.
Brightness and Visibility: This is due to the fact that LED sign modules offer brighter light that makes letters easily visible both inside and outside business premises even during day time. Such qualities make them suitable for applications where visibility matters including advertising and way-finding signs among others.
Durability and Reliability: To be specific, outdoor LED sign modules are strong and can endure shocks, vibrations as well as weather elements. They are made from tough materials and sealed to stop water invasion thus ensuring they work in various environments.
Flexibility in Design: These units come in different sizes, shapes and configurations allowing users freedom of design while installing them. Different types of signage structures like light boxes, channel letters or architectural features can easily incorporate them.
Outdoor Signage: Used to provide a bright and clear light on large outdoor signs, billboards, and marquees. LED sign modules maintain their visibility even in bad weather conditions.

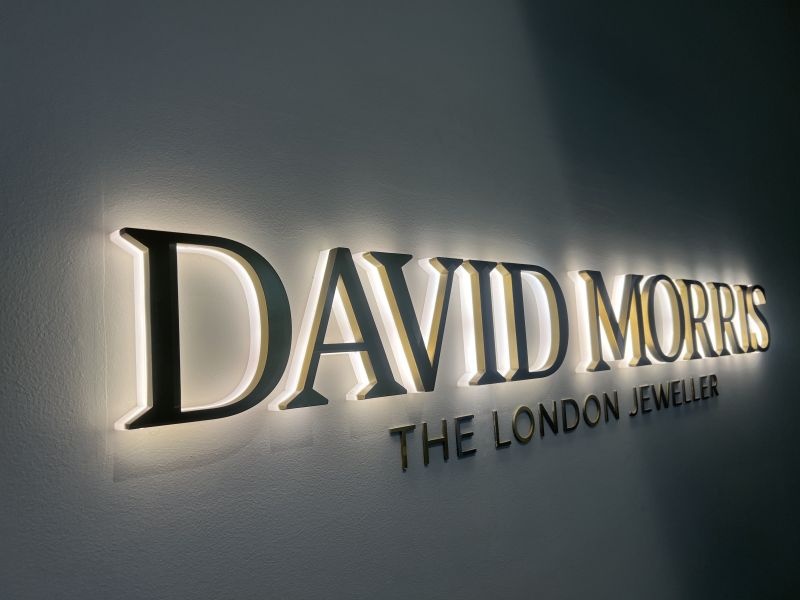

Retail Stores: To attract customers and show them products or services, they are integrated onto storefront signs, window displays and promotional boards. Retail establishments become visible with the use of LED signs’ modules.
Hospitality: This is done for illuminated logos, directional signs as well as menu boards found in hotels, restaurants and bars. LED sign modules create a welcoming atmosphere that will act as a guide for guests.
Public Spaces: This is used in airports, train stations stadiums and shopping malls for wayfinding signs, informational displays as well as adverts. It directs visitors using led sign modules thus it is effective in crowded places.
Digital Signage: For dynamic content presentation on digital displays and video walls. The suitability of these kinds of screens for advertising and message dissemination arises from its high resolution properties through the application of LED sign modules.
Installation methods vary depending on the application and signage type. LED sign modules can be mounted using screws, adhesive tapes, or clips. They are integrated into sign structures, lightboxes, channel letters, or directly mounted onto surfaces as needed.
Yes, LED sign modules come in various sizes, shapes, and colors to meet specific signage requirements. They can be customized for different lighting effects, color temperatures, and brightness levels based on the application needs.
LED sign modules have a long lifespan, typically ranging from 30,000 to 100,000 hours of operation or more, depending on the quality of the LEDs and operating conditions. This longevity reduces the need for frequent replacements and maintenance.
Yes, LED sign modules can be dimmed or adjusted using compatible dimming controllers or drivers. This feature allows for flexibility in controlling the brightness levels of signage based on ambient light conditions or specific visual requirements.
Maintenance for LED sign modules is minimal due to their long lifespan and durable construction. Periodic cleaning to remove dust and debris from the surface of the modules can help maintain optimal performance and longevity.
LED sign modules are highly energy-efficient, consuming significantly less electricity than traditional lighting sources such as fluorescent or incandescent bulbs. This results in lower energy costs and reduced carbon footprint, contributing to energy savings and sustainability efforts.
