12V Injection LED Modules for Channel Letter
  • 12V Injection LED Modules for Channel Letter
  • 12V Injection LED Modules for Channel Letter
12V Injection LED Modules for Channel Letter
12V Injection LED Modules for Channel Letter

12V Injection LED Modules for Channel Letter

Channel letter LED modules offer a dependable and competent illumination for signs. These modules consume less electricity thus saving energy as they remain bright with a 12 volt source. They are made of injection molding to give durability as well as resisting weather making it perfect for outdoor uses.
  • Product Information

12V Injection LED Modules for Channel Letter

Channel letter LED modules offer a dependable and competent illumination for signs. These modules consume less electricity thus saving energy as they remain bright with a 12 volt source. They are made of injection molding to give durability as well as resisting weather making it perfect for outdoor uses. It is flexible to install being used in a variety of channel letter sign types that catch people’s attention due to their vibrancy. For the ultimate display that stands out, remember the reliable performance of 12v injection led modules on your signage. It is best suited for light box with side height range between 4 and 10cm.

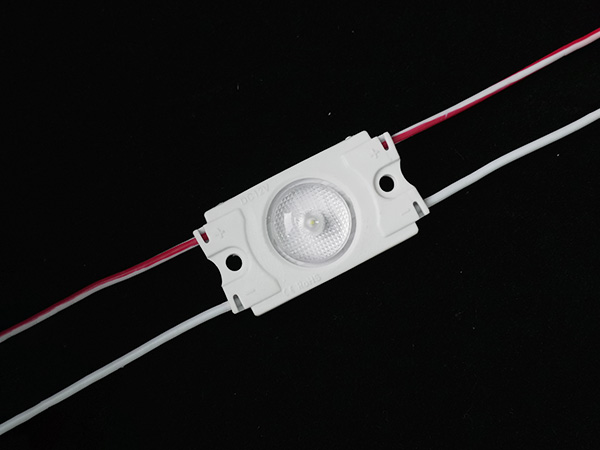

1705914050153091

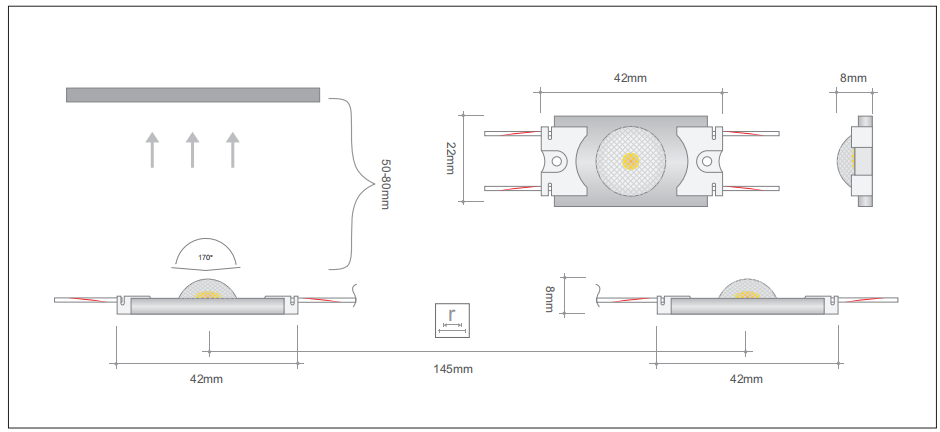

 LED Modules for Channel Letter Size Drawing:

1705912987326887


 LED Modules for Channel Letter Specifications:

ModelMH-H1Moq200
ManufacturerMengHaoPiece Weight0.009
Country Of OriginChinaSize42*22mm
Lamp Bead Type3030Center Distance145mm
Lamp Bead Amount1PCSBead Distance/
Level Of ProtectionIP65Wire Length155mm
Luminance155lmLinear Diameter0.57mm
Brightness Per Watt155lmEach String/One20
Voltage12VPackage/Piece200
Power0.5WGuarantee Period3 Years
Illuminance3250Cases/PCS3000
Irritation Angle175°Case/Weight20kg
ColourW/CWCarton Size51*36*29.5CM
Color Temperature7000-10000KLumen Depreciation<6%
Wire Diameter0.26mm²Life Time50000


Advantages of LED Modules for Channel Letter

  1. Energy Efficiency: LED modules are very energy efficient compared to traditional light sources such as neon or fluorescent lights and therefore use little power. Thus a lot of energy can be saved leading to lower business costs.

  2. Long Lifespan: Unlike other lighting systems, LED modules have a very long lifespan. They run for tens of thousands of hours continuously without needing continuous replacement and maintenance charges that come with signage.

  3. Brightness and Visibility: This means that the channel letter signs which are mounted outside become more visible even in broad daylight because they emit bright uniform light. Consequently, the sign remains effective and eye-catching so it attracts customers while advertising the brand.

  4. Customizable Colors: To illustrate, these may come in different colors that enable businesses to match their channel letter signage with their branding or look stunning. Besides,  give way to color variations while providing consumers with dynamic visual impact.

  5. Compact Size: The majority of them are slim enough to fit into narrow letters or intricate designs where there’s limited space available. Additionally being small makes them contribute towards precise zoning within the advertisement thus avoiding spots.

  6. Low Maintenance: They need only occasional cleaning and inspection because they usually last throughout their intended period without any damage occurring. These fixtures rarely malfunction; thus they only need routine check-ups since they are meant for longer spans before they stop working completely.

  7. Instant On/Off: Instead this indicates no warm-up time is required after switching on for example when dealing with traditional lamps unlike other types of bulbs. In fact this ensures one thing – people cannot miss these signs especially during peak periods or tight deadlines.

  8. Environmental Benefits: As a result Green building initiatives would prefer LEDs due to its eco-friendliness as it does not contain materials such as Mercury which produces minimal heat and emissions too. Therefore it represents an environmentally sustainable lighting solution that is compliant with environmental regulations.

  9. Durability and Weather Resistance: For instance some LED modules can withstand shock, vibration and changes in temperature hence are preferred for outdoor signage applications. Thus they can operate without being destroyed by unfavorable weather conditions e.g. rain, snow or even bright sunshine so that their efficiency is not lost.



Application of LED Modules for Channel Letter

  • Outdoor Signage: Often, LED modules are used in outdoor channel letter signs that are seen outside major retail outlets, malls and other commercial establishments like restaurants. They have good visibility and can last long, even when the weather is cloudy or rainy so that the sign remains colorful and attractive.

  • Indoor Signage: Moreover, inside shopping centers, corporate headquarters or airports as well as exhibition halls and trade fair stands etc., they use LED modules on indoor channel letter signs. These lights also enable consistent light for indoor spaces with low consumption levels of energy thereby increasing brand presence and attracting customer attention.

  • Architectural Signage: These may include building facades among others architectural signage; entrance signs or direction signs that are integrated with L.E.D. modules nowadays becoming very common. It is possible to use these devices to produce custom letters plus logos thus enhancing beauty within architectural landmarks including structures due to their versatility.

  • Vehicle Signage: On the other hand, truck advertising has been dominated by LEDs while mounting vehicle-based channel letters’ signs on vans, buses among other modes of transport. In addition since they are portable during movement but resilient plus bright; it makes them ideal for mobile advertisements because they occupy small spaces.

  • Wayfinding Signs: At least at airports such as hospitals or train stations where there are way finding signage systems guiding visitors through such large buildings among others mostly employs LEDs. Complex environments will always require lit up channel letters which work best therefore one must be attentive when scouting around to avoid making mistakes during navigation.

  • Retail Displays: For instance, in POP (Point of Purchase) signage plus product showcases among others retail displays using LEDs represent specific products or promotions connected with a particular shop outlet. Therefore this kind of lighting provides brightness in combination with efficiency by bringing customers closer through channeled alphabets hence boosting sales at store level.

  • Event Signage: For example temporary signs at major business shows such as organizations fairs during exhibitions and trade events only use LEDs. During a business function, channel letters that contain L.E.D. lights are an efficient means of branding and messaging for such products to improve their visibility.

  • Hospitality Signage: Consequently, hotels, resorts as well as casinos and restaurants have channel letter signs with LED modules for branding, amenity advertisement and overall guest experience. Therefore well-lit and professionally designed channel letters are a key component of the hospitality industry’s visual identity and brand recognition.

  • Real Estate Signs: They include LED modules in property listings like open house signs or brokerage office signages. Besides this at night since they attract buyers these stands will expose them to different properties on sale through lighted channel alphabets containing L.E.Ds.

  • Safety Signs: Safety signage including illuminated lettering has improved emergency exit signs among others at commercial buildings using LED lighting systems such as fire escape maps or evacuation route markers. There is compliance with safety regulations due to the visibility of lit-up channel letters hence making sure that they are always right even in accordance with the law thereby enhancing people’s safety all along.





LED Modules for Channel Letter FAQ

Are LED Modules for Channel Letters Waterproof?

Yes, many LED modules for channel letters are designed to be waterproof or water-resistant, allowing them to withstand outdoor environments and exposure to moisture.


Can LED Modules for Channel Letters Be Customized?

Some manufacturers offer customizable LED modules for channel letters, allowing for specific configurations of LED colors, brightness levels, and wire lengths to meet project requirements.


How Do I Power LED Modules for Channel Letters?

LED modules for channel letters are typically powered by low-voltage DC power sources, such as LED drivers or power supplies, ranging from 12V to 24V depending on the module specifications.


Can LED Modules for Channel Letters Be Dimmed?

Yes, many LED modules for channel letters are dimmable, allowing for adjustable brightness levels to suit different lighting needs or preferences.


How Long Do LED Modules for Channel Letters Last?

LED modules for channel letters have a long lifespan, typically lasting anywhere from 30,000 to 100,000 hours or more, depending on the quality of the LEDs and operating conditions.


Do LED Modules for Channel Letters Require Maintenance?

LED modules for channel letters are generally low-maintenance, requiring occasional cleaning to remove dust or debris buildup for optimal performance.


Are LED Modules for Channel Letters Energy-Efficient?

Yes, LED modules for channel letters are highly energy-efficient, consuming significantly less power than traditional neon or fluorescent lighting while delivering bright, uniform illumination.


Are LED Modules for Channel Letters Easy to Install?

Yes, LED modules for channel letters are designed for easy installation, with options for adhesive backing, screw mounting, or snap-in installation depending on the application.


Can LED Modules for Channel Letters Be Used with Lighting Controllers?

Yes, LED modules for channel letters can be integrated with various lighting control systems, including dimmers, timers, and programmable controllers, for enhanced functionality and customization.
