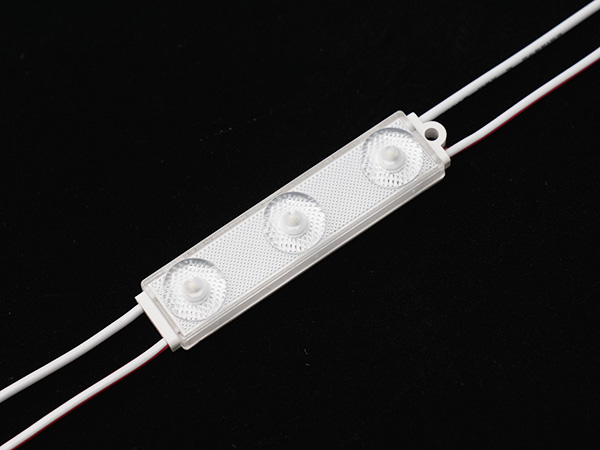

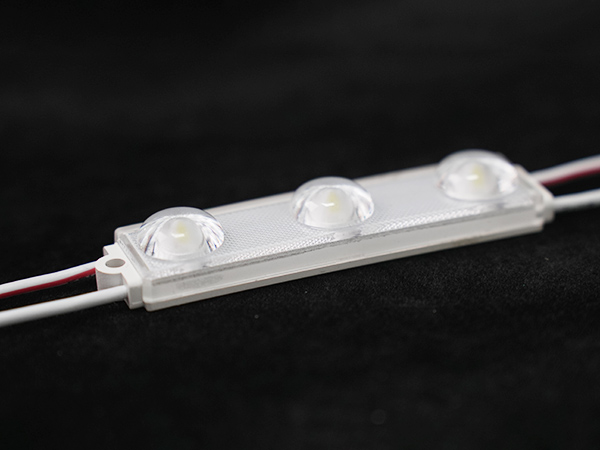

The injection LED Module is a specialized lighting component created through advanced injection molding techniques. This module seamlessly embeds LEDs into its structure, ensuring uniform illumination. Its design allows for easy integration into various applications, such as signage and displays. With efficient energy consumption and a modular build, the Injection LED Module offers a versatile and visually appealing solution for projects requiring vibrant and evenly distributed lighting. Elevate your designs with the precision and flexibility provided by the Injection LED Module. Suitable for 6cm-15cm light box light letters.
| Model | MH-F3 | Moq | 200 |
| Manufacturer | MengHao | Piece Weight | 0.013 |

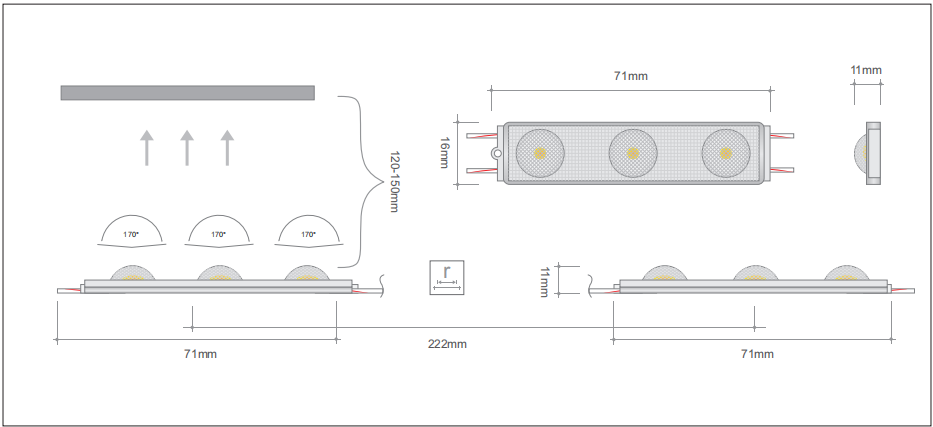

| Country Of Origin | China | Size | 71*16mm |
| Lamp Bead Type | 3030 | Center Distance | 222mm |
| Lamp Bead Amount | 3PCS | Bead Distance | 25mm |
| Level Of Protection | IP65 | Wire Length | 165mm |
| Luminance | 232.5lm | Linear Diameter | 0.67mm |
| Brightness Per Watt | 155lm | Each String/One | 20 |
| Voltage | 12V | Package/Piece | 200 |
| Power | 1.5W | Guarantee Period | 3 Years |
| Illuminance | 4200 | Cases/PCS | 3000 |
| Irritation Angle | 175° | Case/Weight | 26kg |
| Colour | W/CW | Carton Size | 51*36*31CM |
| Color Temperature | 2800-15000K | Lumen Depreciation | <6% |
| Wire Diameter | 0.355mm² | Life Time | 50000 |
