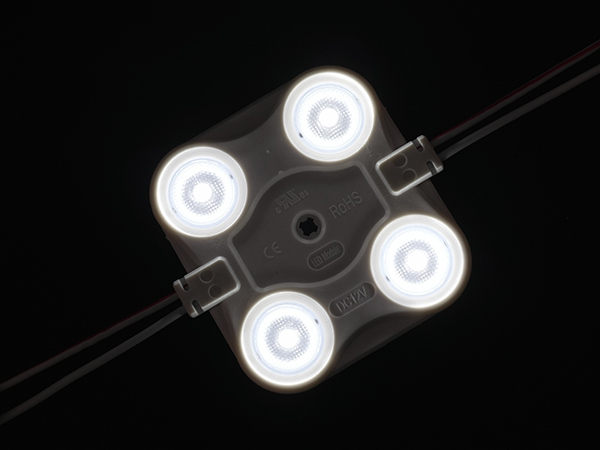

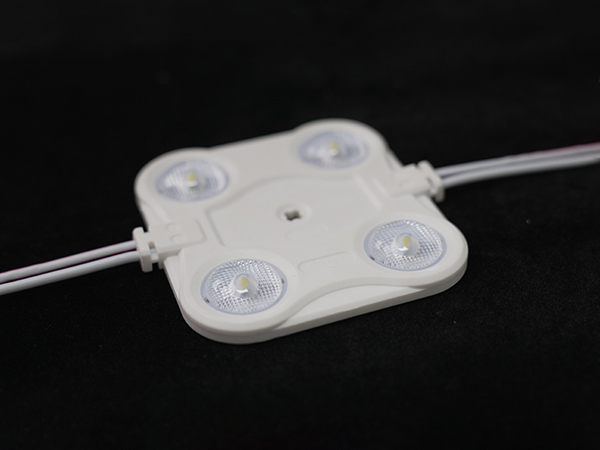

Square LED Module forLightbox Channel Letters
  • Square LED Module forLightbox Channel Letters
  • Square LED Module forLightbox Channel Letters
  • Square LED Module forLightbox Channel Letters
Square LED Module forLightbox Channel Letters
Square LED Module forLightbox Channel Letters
Square LED Module forLightbox Channel Letters

Square LED Module forLightbox Channel Letters

A compact design of a square LED module makes it very versatile as a lighting component. It is frequently used for its standard and effective light distribution, thus making it applicable in different areas. This shape facilitates easy integration into different types of surfaces and fixtures hence rendering it famous for decorative lights, sign posts, displays and the like.
  • Product Information

Square LED Module forLightbox Channel Letters

A compact design of a square LED module makes it very versatile as a lighting component. It is frequently used for its standard and effective light distribution, thus making it applicable in different areas. This shape facilitates easy integration into different types of surfaces and fixtures hence rendering it famous for decorative lights, sign posts, displays and the like. The square LED module comes with easy fixing requirements and lower levels of power consumption making it an ideal solution to achieving well balanced yet visually appealing lightings in either commercial or residential buildings. Decorate your space with the reliability and adaptability of square LED modules. It can be employed for light box with side height between 6cm-20cm.

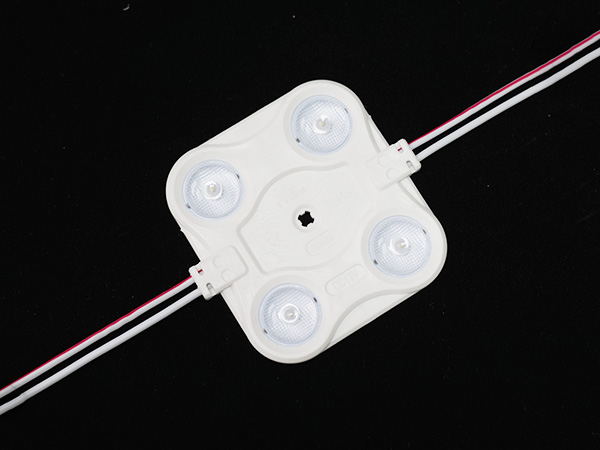

1705913966520817

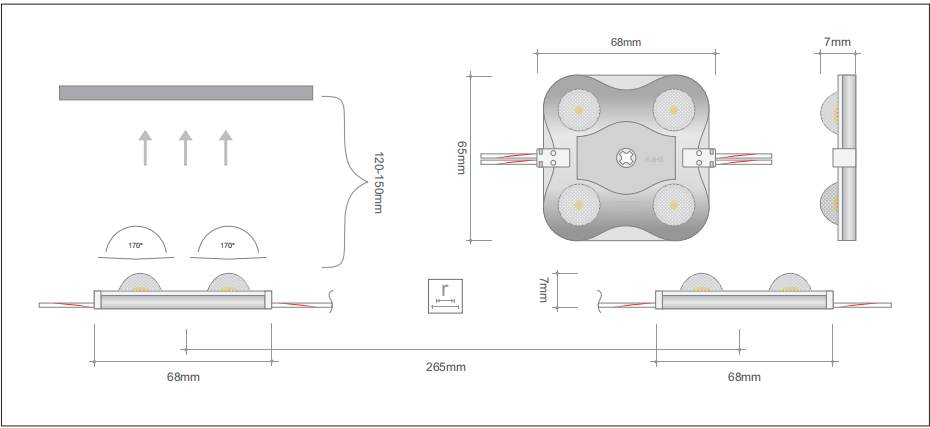

Square LED Module Size Drawing:


1705911756386279


Square LED Module Specifications:


ModelMH-H4Moq200
ManufacturerMengHaoPiece Weight0.01
Country Of OriginChinaSize68*65mm
Lamp Bead Type2835Center Distance265mm
Lamp Bead Amount4PCSBead Distance25mm
Level Of ProtectionIP65Wire Length165mm
Luminance620lmLinear Diameter0.32mm
Brightness Per Watt155lmEach String/One10
Voltage12VPackage/Piece100
Power4WGuarantee Period3 Years
Illuminance6500Cases/PCS1000
Irritation Angle170°Case/Weight34kg
ColourW/CWCarton Size50*30*29CM
Color Temperature2800-15000KLumen Depreciation<6%
Wire Diameter0.21mm²Life Time50000



Advantages of Square LED Module

  1. Consistent Brightness: Square LED modules are evenly lit, so they can be used in lighting applications like general lighting, task lighting or accent lighting. These devices will ensure that the light is spread evenly over the space thereby improving visibility and enhancing the attractiveness of your indoor or outdoor area.

  2. Efficiency: As a result, these square LED modules are highly energy-efficient as they transform nearly all electrical energy into light that is visible. In comparison with other traditional lamps such as incandescent, fluorescent bulbs which consume huge amounts of electricity at equal brightness levels; square LED modules use much less energy than them, thus reducing power consumption costs and decreasing carbon emissions.

  3. Long life: lasts for tens of thousands of hours. The longevity means that it doesn’t require replacing as often and maintenance costs are low making it an economical option for long-term lighting solutions.

  4. Versatility: Various sizes, wattages and color temperatures mean that these particular modules can be fixed into different types of luminaires for various uses including general area lighting, task lights, as well as decorative/architectural applications.

  5. Instant On/Off: There is no warm-up time required by these lights; once switched on they illuminate immediately. This way you can always expect instant uniform illumination in any surrounding thereby increasing convenience, workability, simplicity and saving power usage amount.

  6. Dimmability: As such there are many square LED modules that have dimming capabilities allowing users to set their venue’s brightness according to their needs or special requirements regarding light intensity. This feature becomes extremely important where different levels of illumination are needed such as hotels, restaurants, homes etc.

  7. Durability: Being resistant to shock or vibration as well as temperature changes makes these square LED modules very rugged. In commercial settings these may even be turned on/off during rough handling meaning they last longer than other models available today including those meant for outdoor purposes.

  8. Environmentally Friendly: These lights do not contain mercury and consequently make no significant contribution to environmental pollution and do not produce any heat. After the end of their service life, they can be collected for recycling purposes thereby reducing environmental pollution and waste.





Application of Square LED Module

  • Architectural lighting: Accent lighting, wall washing, grazing etc. in architectural lighting are done using square LED modules. Some of these can be integrated into the fabric of a building thereby accentuating such things as facades, bridges and monuments.

  • Retail Display Lighting: Retail display applications involve the use of square LED modules in shelves and display cases. This ensures that products are visible by providing bright and even light to highlight their texture and color so as to attract attention to specific items.

  • Interior Lighting: Ambient general lighting is required in residential, commercial and institutional interiors where square LED modules are used. Moreover, they may also be mounted on pendants or ceiling fixtures; downlights recessed or ceiling-mount models that provide efficient illumination for living rooms, office corridors or lobbies.

  • Task Lighting: Square LED modules acting as task lights are used in kitchens, workshops, offices and laboratories among others. These LEDs produce focused light without shadows which make them perfect for any precision-required activities like cooking, reading, writing or any form of artistry.

  • Under-cabinet lighting: Under-cabinet lighting helps improve aesthetics while providing task light in kitchens, bathrooms or general retail areas. They could illuminate work surfaces better thus leading to improved visibility creating a modern ambiance.

  • Display case lighting: They have an even backlighting effect onto all sides of cabinets including glass cabinet doors; hence reduce glare from different parts of the cabinet; enabling viewers to see artifacts placed into it easily while reducing harsh reflections.

  • Signage lighting: It generates brilliant daylight every time including channel letter signs illuminating billboards etc both indoors and outdoors.

  • Decorative Lighting: This sort of lamp serves purely decorative purposes for both residential and commercial places. Decorative patterns washed on some examples exterior respectively interior exterior etc add charm

  • Automotive lighting: Automotive headlights taillights daytime running lights (DRL) and interior lights utilize square LED modules in them. The traditional automotive lights sources such as halogen or xenon have lesser visibility, energy efficiency and design flexibility in comparison with these.

  • Exhibition and Event Lighting: A variety of sizes in trade shows, conferences, concerts etc. These lightings are also used for exhibition booths, display stages or signage display areas. Therefore, such lightings provide a versatile lighting choice that enhance the visual impact and mood of different types of events.



Square LED Module FAQ

What is a square LED module?

Square LED modules are lighting units consisting of light emitting diodes (LEDs) arranged in a square configuration on a circuit board and are commonly used in a variety of lighting applications.


What types of light are available with square LED modules?

Square LED modules are available in a variety of colors, including white (warm, neutral or cool), RGB (red, green, blue) and single-color options such as red, green, blue or amber.


What are the main features of square LED modules?

Key features include high brightness, energy efficiency, long life, low heat, compact size and compatibility with different lighting fixtures and applications.


What applications are square LED modules suitable for?

Square LED modules are commonly used for general lighting, accent lighting, architectural lighting, signage, displays and decorative lighting in residential, commercial and industrial environments.


Can square LED modules be dimmed?

Yes, many square LED modules are dimmable, allowing users to adjust brightness levels to create different lighting effects or meet specific lighting needs.


Can square LED modules be used outdoors?

Yes, some square LED modules are designed to be waterproof or weather-resistant, making them suitable for outdoor applications such as landscape lighting or outdoor signage.


How to power a square LED module?

Square LED modules are typically powered by a low-voltage DC source, such as an LED driver or power supply, ranging from 12V to 24V, depending on the module specification.


Do square LED modules need heat sinks?

Some high-power square LED modules may require a heat sink or thermal management solution to effectively dissipate heat and ensure optimal performance and longevity.
