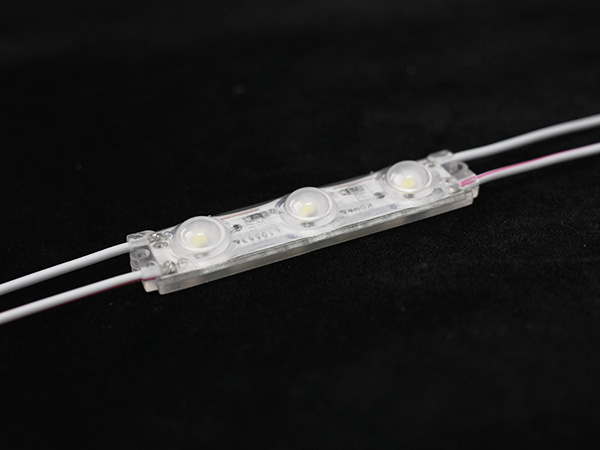

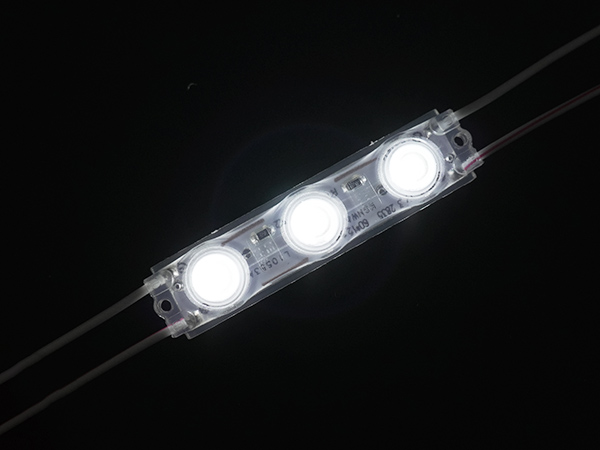

LED Strip Module for Outdoor Channel Letter
  • LED Strip Module for Outdoor Channel Letter
  • LED Strip Module for Outdoor Channel Letter
  • LED Strip Module for Outdoor Channel Letter
LED Strip Module for Outdoor Channel Letter
LED Strip Module for Outdoor Channel Letter
LED Strip Module for Outdoor Channel Letter

LED Strip Module for Outdoor Channel Letter

The LED strip module is a dynamic and adaptable lighting solution featuring a flexible strip embedded with multiple LEDs. Designed for versatile applications, it allows for creative lighting designs in both residential and commercial spaces.
  • Product Information

The LED strip module is a dynamic and adaptable lighting solution featuring a flexible strip embedded with multiple LEDs. Designed for versatile applications, it allows for creative lighting designs in both residential and commercial spaces. With easy installation and customizable lengths, the LED strip module is ideal for accent lighting, signage, and decorative displays. Its energy-efficient performance and vibrant illumination make it a popular choice for creating dynamic and visually appealing lighting effects. Elevate your lighting projects with the versatility and modern aesthetic of the LED strip module. It is suitable for light box with side height of 6cm-15cm.

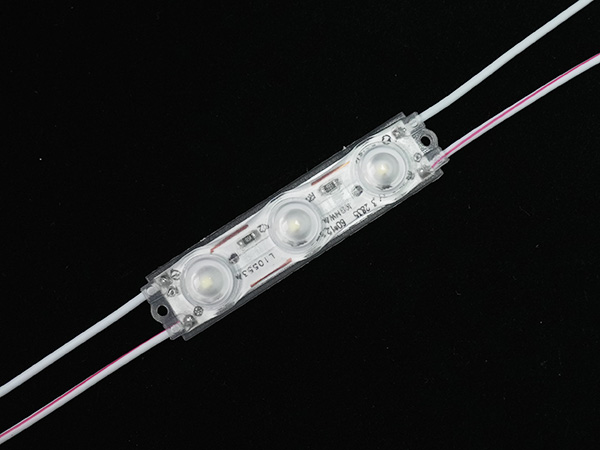

1705914638132322

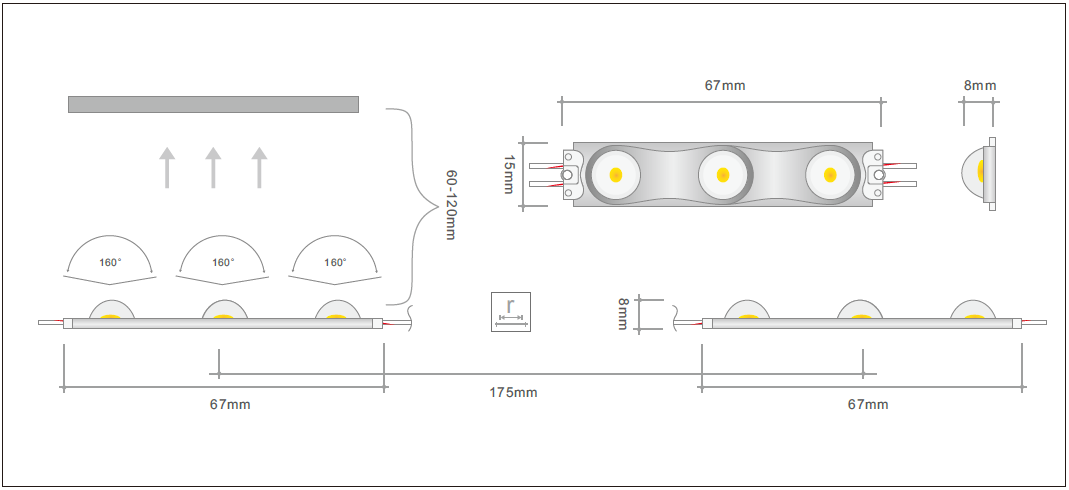

LED Strip Module Size Drawing:

1705914281840907



LED Strip Module Specifications:

ModelMH-S3Moq200
ManufacturerMengHaoPiece Weight0.008
Country Of OriginChinaSize67*15mm
Lamp Bead Type2835Center Distance175mm
Lamp Bead Amount3PCSBead Distance21mm
Level Of ProtectionIP65Wire Length108mm
Luminance260lmLinear Diameter0.48mm
Brightness Per Watt130lmEach String/One20
Voltage12VPackage/Piece200
Power2WGuarantee Period3 Years
Illuminance3500Cases/PCS3000
Irritation Angle165°Case/Weight24.8kg
ColourW/CWCarton Size51*36*31CM
Color Temperature2800-15000KLumen Depreciation<6%
Wire Diameter0.185mm²Life Time50000



LED Strip Module Features:


1. Flexible Design: LED backlight module is known for their flexibility, allowing for versatile and creative lighting designs. The strips can be easily bent or curved to fit different shapes and spaces.


2. Uniform Illumination: These modules provide uniform illumination across the entire length of the strip, ensuring consistent and bright lighting without dark spots or unevenness.


3. Energy Efficiency: LED technology is inherently energy-efficient, making LED Strip Modules a cost-effective lighting solution. They consume less power while delivering high levels of brightness.


4. Color Options: LED Strip Modules come in a variety of color options, including single-color and multi-color variants. This versatility enables customization to suit specific aesthetic preferences or branding needs.


5. Easy Installation: Designed for user-friendly installation, these modules often come with adhesive backing or mounting brackets, making it simple to attach them to different surfaces.


6. Dimmability: Many LED Strip Modules offer dimming capabilities, allowing users to adjust the brightness according to their preferences or specific lighting requirements.


7. Long Lifespan: LED technology boasts a long lifespan, and LED Strip Modules are no exception. They provide durable and reliable lighting solutions that require minimal maintenance.


8. Weather Resistance: Some LED Strip Modules are designed to be weather-resistant, making them suitable for both indoor and outdoor applications. This feature enhances their durability and performance in various environments.


9. Smart Integration: With advancements in technology, some LED Strip Modules can be integrated with smart lighting systems, enabling remote control, automation, and dynamic color changes through compatible devices.


10. Versatility: LED Strip Modules find applications in a wide range of settings, including residential, commercial, architectural, and decorative lighting, showcasing their versatility and adaptability to different lighting needs.



LED Strip Module Application:


1. Architectural Lighting: LED Strip Modules are commonly used for architectural lighting to highlight and accentuate the design features of buildings, bridges, and other structures.

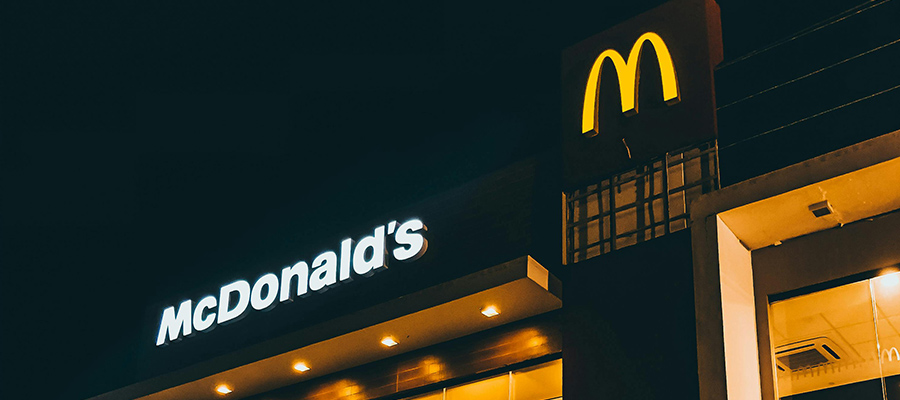

2. Signage and Channel Letters: These modules are ideal for illuminating signage and channel letters, providing a vibrant and attention-grabbing display for businesses.


1705990057632418


3. Under-Cabinet Lighting: LED Strip Modules are popular for under-cabinet lighting in kitchens and other spaces, offering task lighting and enhancing visibility.


4. Retail Displays: Retailers use LED Strip Modules to create attractive and dynamic displays, drawing attention to products and enhancing the overall shopping experience.


5. Decorative Lighting: These modules are widely employed for decorative lighting in both residential and commercial settings, adding ambiance and style to spaces.


1705990065372964


6. Entertainment and Events: LED Strip Modules are often used in entertainment venues, stages, and events to create dynamic lighting effects and enhance the atmosphere.


7. Outdoor Landscapes: Weather-resistant LED Strip Modules are employed in outdoor landscapes, gardens, and pathways to enhance safety and create visually appealing lighting effects.



LED Strip Module FAQs:


What is an LED Strip Module?

An LED Strip Module is a flexible circuit board with mounted LED chips, encapsulated in a protective material. It is designed for easy installation and versatile lighting applications.


How do I install LED Strip Modules?

Installation is typically straightforward. Most LED Strip Modules come with adhesive backing for easy attachment to surfaces. Some may also have mounting brackets or clips for added support.


Can I cut LED Strip Modules to a specific length?

Yes, many LED Strip Modules can be cut at designated points to achieve a custom length. It's important to follow the manufacturer's instructions for cutting and reconnecting.


Are LED Strip Modules waterproof?

Not all LED Strip Modules are waterproof. It depends on the specific product. Some are designed for indoor use, while others are rated for outdoor applications with varying degrees of water resistance.


Do LED Strip Modules come in different colors?

Yes, LED Strip Modules are available in various colors, including single-color options like white, warm white, and cool white, as well as RGB (Red, Green, Blue) options for multi-color effects.


Can LED Strip Modules be dimmed?

Many LED Strip Modules are dimmable, providing the flexibility to adjust brightness levels. However, it's essential to use compatible dimming controllers or systems.


What are the power requirements for LED Strip Modules?

LED Strip Modules typically operate on low voltage, commonly 12V or 24V, making them energy-efficient. It's crucial to use the appropriate power supply for the specified voltage.


Can LED Strip Modules be used for accent lighting in residential settings?

Absolutely. LED Strip Modules are popular for accent lighting in homes, providing a versatile and aesthetically pleasing solution for illuminating various spaces.


Do LED Strip Modules emit heat?

LED Strip Modules are generally cool to the touch because they are energy-efficient and convert a minimal amount of energy into heat. This makes them safe for various applications.
