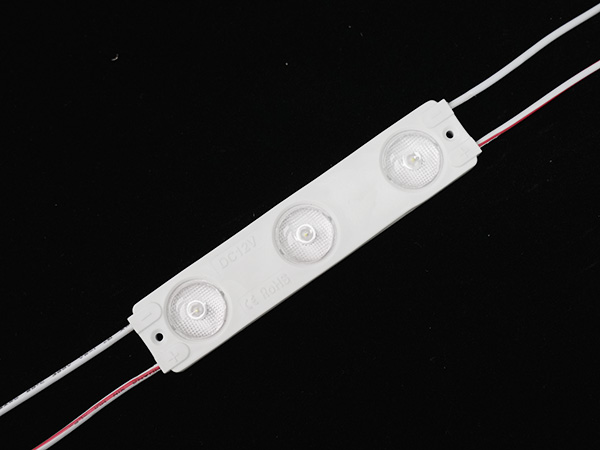

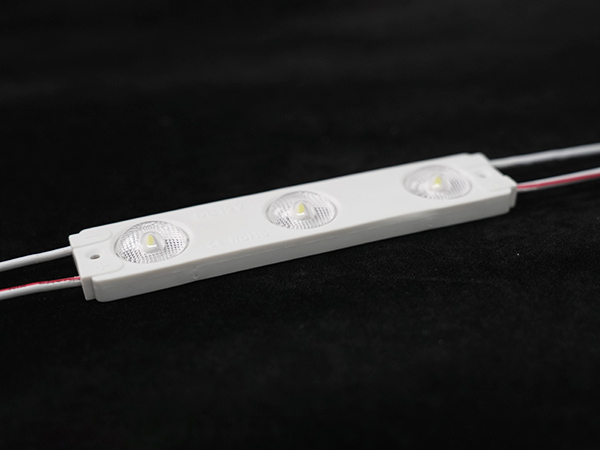

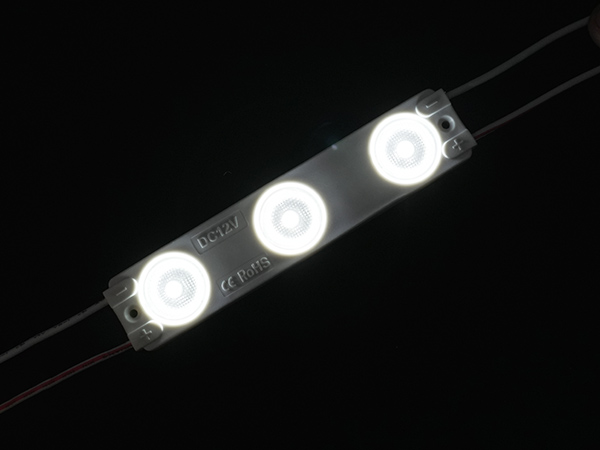

The LED strip light module is a versatile and flexible lighting solution consisting of multiple LEDs embedded in a strip. Designed for easy installation, it offers customizable lengths and diverse applications. This module is perfect for accent lighting, signage, and decorative displays. With its energy-efficient performance and vibrant illumination, the LED strip light module allows for creative and dynamic lighting designs in residential, commercial, and architectural settings. Elevate your spaces with the versatility and ambient glow provided by the LED strip light module. It is suitable for light box with side height of 8cm-15cm.
| Model | MH-H3 | Moq | 200 |
| Manufacturer | MengHao | Piece Weight | 0.009 |

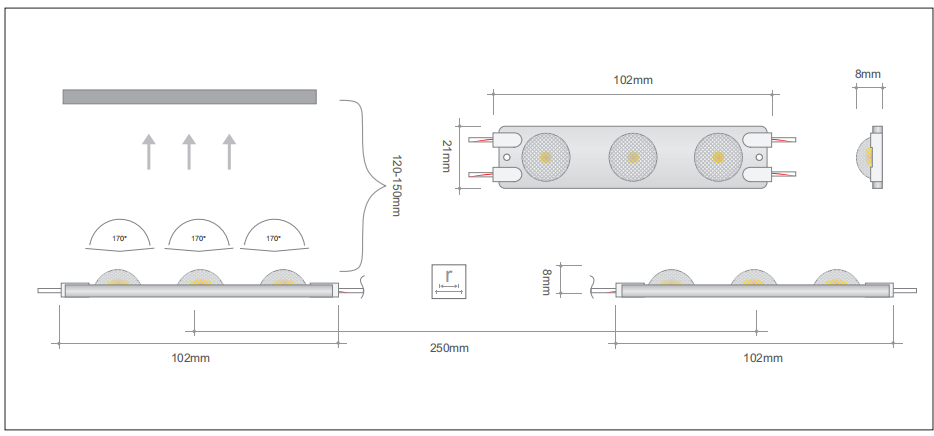

| Country Of Origin | China | Size | 102*21mm |
| Lamp Bead Type | 3030 | Center Distance | 250mm |
| Lamp Bead Amount | 3PCS | Bead Distance | 20mm |
| Level Of Protection | IP65 | Wire Length | 180mm |
| Luminance | 310lm | Linear Diameter | 0.57mm |
| Brightness Per Watt | 155lm | Each String/One | 20 |
| Voltage | 12V | Package/Piece | 200 |
| Power | 2W | Guarantee Period | 5 Years |
| Illuminance | 5850 | Cases/PCS | 2600 |
| Irritation Angle | 175° | Case/Weight | 33kg |
| Colour | W/CW | Carton Size | 51*36*31CM |
| Color Temperature | 7000-10000K | Lumen Depreciation | <6% |
| Wire Diameter | 0.26mm² | Life Time | 50000 |
1. Flexible Design: LED light module is highly flexible, allowing for easy bending and shaping to fit various contours and spaces. This flexibility enables creative and versatile lighting designs.
2. Uniform Illumination: These modules provide uniform and consistent illumination along the entire length of the strip. This ensures that there are no dark spots or uneven lighting, resulting in a visually appealing display.
3. Energy Efficiency: LED technology, known for its energy efficiency, is a prominent feature of these modules. They consume less power while delivering bright and efficient lighting, contributing to energy savings.
4. Color Options: LED Strip Light Modules are available in a variety of color options, including single-color and RGB variants. This allows for customization, making them suitable for diverse lighting applications.
5. Easy Installation: Designed for user-friendly installation, these modules often come with adhesive backing for simple attachment to surfaces. This ease of installation makes them accessible for DIY projects.
6. Dimmability: Many LED Strip Light Modules offer dimming capabilities, providing the flexibility to adjust the brightness levels according to preferences or specific lighting requirements.
7. Long Lifespan: LED technology is known for its longevity, and LED Strip Light Modules are no exception. They have a long operational lifespan, reducing the need for frequent replacements.
8. Weather Resistance: Some LED Strip Light Modules are designed to be weather-resistant, making them suitable for outdoor applications. This feature enhances their durability and performance in various weather conditions.
9. Versatility in Length: LED Strip Light Modules often come in reels, allowing users to cut them to custom lengths. This versatility makes them adaptable to different project requirements.
10. Wide Range of Applications: LED Strip Light Modules find applications in diverse settings, including architectural lighting, signage, under-cabinet lighting, accent lighting, and decorative displays, showcasing their versatility.
1. Architectural Lighting: LED Strip Light Modules are widely used in architectural lighting to accentuate and highlight the features of buildings, creating visually appealing structures.
2. Signage and Channel Letters: These modules are a popular choice for illuminating signage and channel letters, providing bright and attention-grabbing displays for businesses.
3. Under-Cabinet Lighting: LED Strip Light Modules are commonly employed for under-cabinet lighting in kitchens and other spaces, offering functional task lighting and enhancing visibility.
4. Retail Displays: Retailers utilize LED Strip Light Modules to create dynamic and eye-catching displays, effectively showcasing products and attracting customers.
5. Decorative Lighting: These modules are ideal for decorative lighting in both residential and commercial settings, adding ambiance and style to various spaces.
6. Entertainment and Events: LED Strip Light Modules are often used in entertainment venues, stages, and events to create dynamic lighting effects and enhance the overall atmosphere.
7. Outdoor Landscapes: Weather-resistant LED Strip Light Modules are utilized in outdoor landscapes, gardens, and pathways to enhance safety and create visually appealing lighting effects.
8. Cove Lighting: LED Strip Light Modules are commonly installed in coves along ceilings or walls, providing indirect lighting that adds warmth and depth to architectural spaces.
9. Hospitality and Hotels: In the hospitality industry, LED Strip Light Modules are used to enhance the ambiance of hotels, restaurants, bars, and other leisure spaces.
10. Mood Lighting in Homes: Homeowners often use LED Strip Light Modules to create mood lighting in living spaces, bedrooms, and entertainment areas, providing customizable lighting options.
An LED Strip Light Module is a flexible circuit board containing mounted LED chips, encapsulated in a protective material. It is designed for versatile lighting applications.
Installation is typically straightforward. Most LED Strip Light Modules come with adhesive backing for easy attachment to surfaces. Some may also have mounting brackets or clips for added support.
Yes, many LED Strip Light Modules can be cut at designated points to achieve a custom length. However, it's important to follow the manufacturer's instructions for cutting and reconnecting.
Not all LED Strip Light Modules are waterproof. It depends on the specific product. Some are designed for indoor use, while others are rated for outdoor applications with varying degrees of water resistance.
Yes, LED Strip Light Modules are available in various colors, including single-color options like white, warm white, and cool white, as well as RGB (Red, Green, Blue) options for multi-color effects.
Many LED Strip Light Modules offer dimming capabilities, providing the flexibility to adjust brightness levels. However, it's crucial to use compatible dimming controllers or systems.
LED Strip Light Modules typically operate on low voltage, commonly 12V or 24V, making them energy-efficient. It's essential to use the appropriate power supply for the specified voltage.
Some LED Strip Light Modules are designed for outdoor applications and are built to withstand exposure to the elements. These are often rated for water resistance.
Absolutely. LED Strip Light Modules are popular for accent lighting in homes, providing a versatile and aesthetically pleasing solution for illuminating various spaces.
