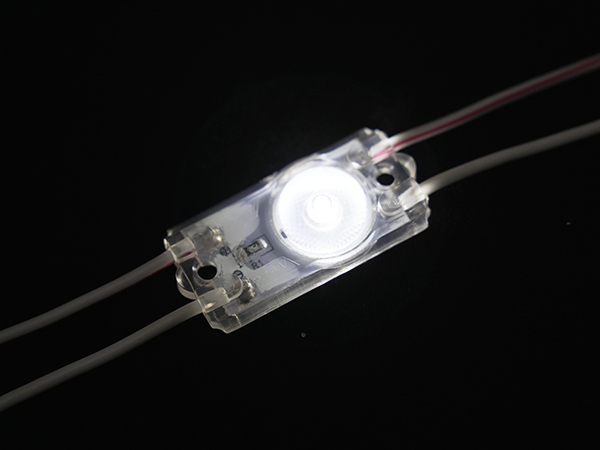

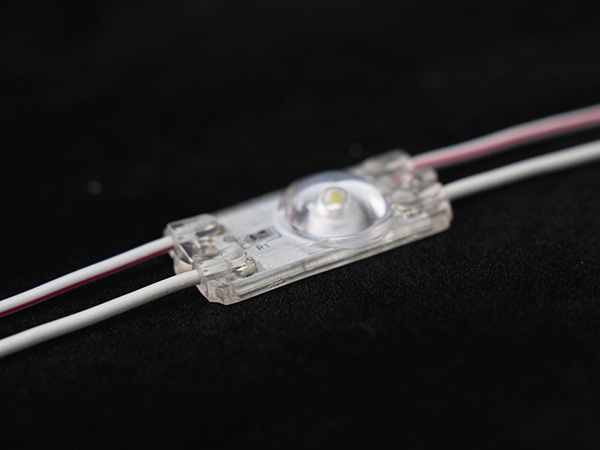

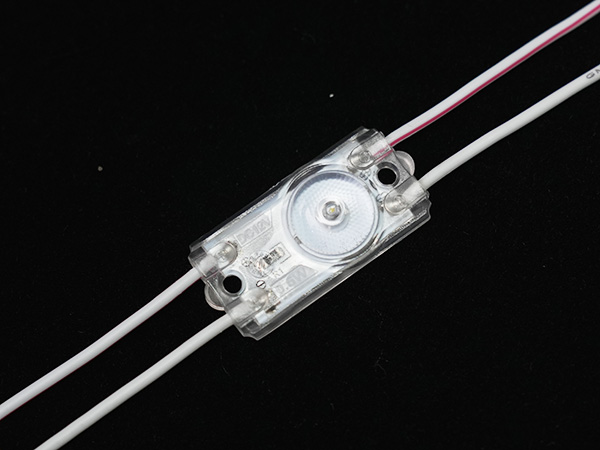

LED Sign Lighting Modules for Mini Channel Letters
LED sign lighting modules are purpose-built components designed to enhance the visibility and attractiveness of signage. With energy-efficient LED technology, these modules provide bright and uniform illumination, ensuring that signs are vibrant and eye-catching. Easy to install and suitable for various sign types, these modules offer versatility in signage projects. Elevate your brand presence and capture attention with the reliable performance of LED sign lighting modules, a cost-effective and visually impactful solution for effective communication. It is suitable for light box with side height of 4cm-10cm.
| Model | MH-E1 | Moq | 200 |
| Manufacturer | MengHao | Piece Weight | 0.04 |

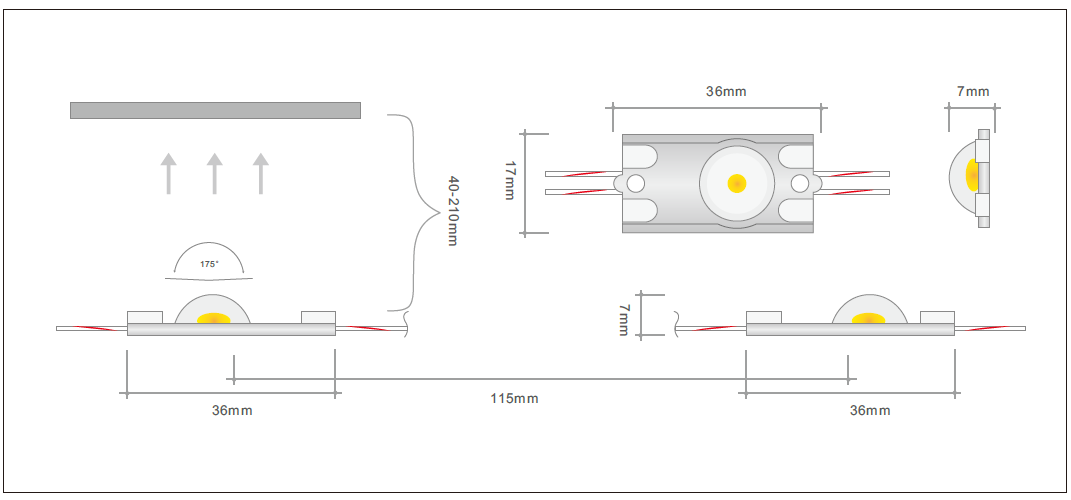

| Country Of Origin | China | Size | 36*17mm |
| Lamp Bead Type | 3030 | Center Distance | 115mm |
| Lamp Bead Amount | 1PCS | Bead Distance | / |
| Level Of Protection | IP65 | Wire Length | 115mm |
| Luminance | 72.5lm | Linear Diameter | 0.57mm |
| Brightness Per Watt | 145lm | Each String/One | 20 |
| Voltage | 12V | Package/Piece | 300 |
| Power | 0.5W | Guarantee Period | 3 Years |
| Illuminance | 3250 | Cases/PCS | 4500 |
| Irritation Angle | 170° | Case/Weight | 21kg |
| Colour | W/CW | Carton Size | 51*36*31CM |
| Color Temperature | 2800-15000K | Lumen Depreciation | <6% |
| Wire Diameter | 0.26mm² | Life Time | 50000 |
Energy Efficiency: LED sign lighting modules are highly energy efficient and consume much less energy than traditional light sources such as neon or fluorescent lights. They convert large amounts of electrical energy into visible light, reducing energy costs and carbon emissions.
Long Life: Typically, LED sign lighting modules last tens of thousands of hours before being replaced. This means signage maintenance and replacement is also less frequent.
Brightness and Visibility: Sunlight or outdoor conditions won’t make it difficult to see your sign, as LED sign lighting modules have a bright and evenly distributed light. In this way, the signage is still effective in grabbing customers' attention and making their brand known.
Customizable Design: LED sign lighting modules are available in a variety of shapes, sizes, and configurations, so the lighting design can be customized to meet specific requirements or aesthetics. This provides creative flexibility for designs as they easily fit different types of logos.
Instant On/Off: Unlike other types, LED sign lighting modules do not require warm-up time before they begin to glow after power is applied. This ensures instant and consistent lighting in a variety of environments, increasing convenience and usability.
Color Choice: Businesses can choose from a variety of colors for their signs when using LED sign lighting modules; these may match their branding or create an eye-catching effect. RGB (red, green, blue) LED modules provide greater flexibility to achieve dynamic color-changing effects for added visual impact.
Durability: LED luminaires, such as signs, are designed to withstand shock, vibration, and temperature changes, providing long-life performance even when exposed to outdoor conditions such as pouring rain, snow, or UV radiation
Low Maintenance: LED sign lighting modules require minimal maintenance compared to traditional lights as they typically last longer if regularly cleaned and inspected by experts.
Environmentally Friendly: Mercury-free and generates minimal heat during operation LEDs contain no harmful substances, thus promoting sustainability. They can also be recycled at the end of their useful life, reducing environmental impact and solid waste.
Channel Letters: LED sign lighting modules are commonly used to illuminate individual channel letters in outdoor and indoor signage. They provide bright and even illumination, ensuring letters are clearly visible from long distances and in a variety of lighting conditions.
Box Signs: Box signs (called cabinet signs or light boxes) are common and have integrated LED sign lighting modules for backlighting or edge lighting. These help to illuminate the entire surface of the sign evenly, allowing information or graphic elements to stand out while enhancing the visibility of everything else on the sign.
Illuminated Letter Signs: These illuminated letter signs are commonly found on storefronts, restaurants, bars, and other commercial establishments and utilize LED sign lighting modules. This ensures vibrant signage day and night due to its high energy efficiency and long lifespan.
Neon Replacement: A modern way to replace traditional neon lights with LED sign lighting modules. They have a similar effect to neon tubes, which come in a variety of colors and are extremely bright, but with the added durability, flexibility, and customization of signage applications.
Architectural Signage: Signs, symbols such as LED sign lighting modules are incorporated into architectural signage features such as signs, symbols and directional signs. These can be used in any type of outdoor environment or indoor space where people are likely to conduct activities; they can be of great help for branding campaigns, especially when it comes to wayfinding inside commercial establishments as well as public spaces including schools.
Retail Storefronts: Retail storefronts feature LED sign lighting modules to highlight brand logos, store names, and promotional messages. In this way, retail businesses can get a visually appealing signage display that attracts customers and creates brand awareness, thereby increasing sales due to the number of customers, thereby increasing the profits earned by such stores.
Restaurant and Bar Signs: As far as restaurant/bar signs are concerned, these require LED sign lighting modules in order to attract the attention of customers. By doing this, people can be attracted to a particular place, thereby increasing its visibility and thus attracting more customers.
Billboards and Outdoor Advertising: The use of LED sign lighting modules in large outdoor advertising displays, including billboards, digital displays and roadside signs ensures high-brightness illumination ensuring visibility throughout for car users or passers-by information in it. day and night.
Trade Show Displays: Trade show displays, booths, and promotional booths have built-in LED sign lighting modules for displaying branding, logos, and product information. This makes such signage attractive enough to capture the attention of visitors at trade shows while communicating about marketing aspects at such events.
Custom Signage Projects: LED sign lighting modules are widely used in custom signage projects such as architectural features, public art installations, and special events. They offer a way to design logos without any limitations on the possibilities in terms of creativity in different types of logos.
LED sign lighting modules are specialized lighting fixtures designed for lighting signs, channel letters, and other signage applications.
LED sign lighting modules use light emitting diodes (LEDs) mounted on a circuit board to provide bright, even illumination of signs. They are usually powered by a low voltage DC power supply.
LED sign lighting modules can be used to illuminate various types of signs, including channel letters, light boxes, tower signs, cabinet signs and architectural signs.
Key features include high brightness, energy efficiency, long life, weather resistance, ease of installation and compatibility with different signage materials.
LED sign lighting modules are available in a variety of colors, including white (warm, neutral, or cool), RGB (red, green, blue), and single-color options such as red, green, blue, or amber.
Many LED sign lighting modules are designed to be waterproof or weather-resistant, making them suitable for outdoor sign applications.
When selecting an LED sign lighting module, consider factors such as the size and type of sign, desired brightness and color, power consumption, waterproofing rating, and environmental conditions.
Some manufacturers offer customizable LED sign lighting modules that allow specific configurations of LED color, brightness level, and wire length to meet project requirements.
