High-Visibility Illumination Outdoor LED Sign Modules
  • High-Visibility Illumination Outdoor LED Sign Modules
  • High-Visibility Illumination Outdoor LED Sign Modules
  • High-Visibility Illumination Outdoor LED Sign Modules
High-Visibility Illumination Outdoor LED Sign Modules
High-Visibility Illumination Outdoor LED Sign Modules
High-Visibility Illumination Outdoor LED Sign Modules

High-Visibility Illumination Outdoor LED Sign Modules

Outdoor LED sign modules are rugged and weather-resistant components tailored for outdoor signage. These modules utilize advanced LED technology to provide bright, high-visibility illumination even in challenging outdoor conditions.
  • Product Information

High-Visibility Illumination Outdoor LED Sign Modules

Outdoor LED sign modules are rugged and weather-resistant components tailored for outdoor signage. These modules utilize advanced LED technology to provide bright, high-visibility illumination even in challenging outdoor conditions. With durable construction, they withstand elements like rain and sunlight, ensuring longevity. Easy to install and energy-efficient, outdoor LED sign modules offer a reliable solution for businesses, advertisers, and public spaces seeking to create impactful and durable outdoor displays. Elevate your outdoor signage with these modules for enhanced visibility and lasting visual appeal. It is suitable for light box with side height of 4cm-10cm.


1705908633661688

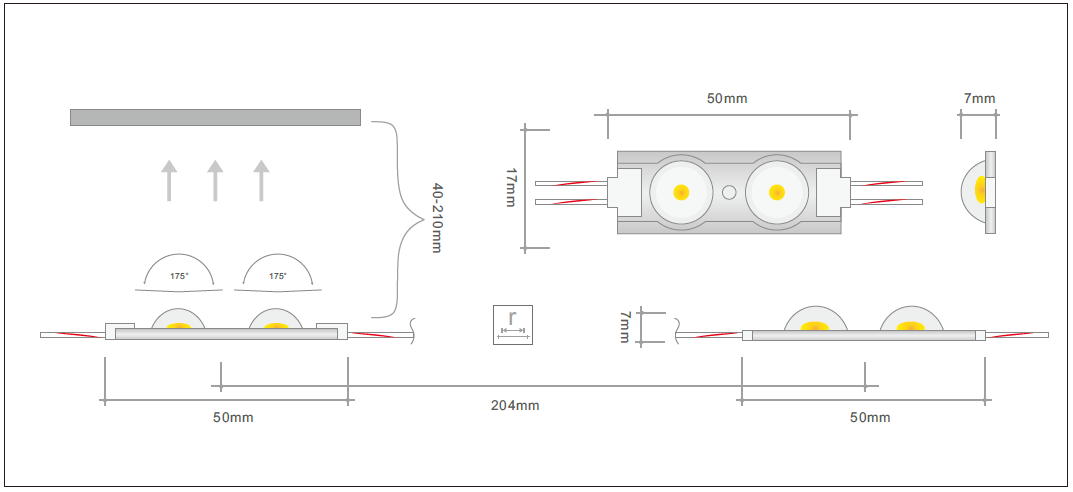

Outdoor LED Sign Modules Size Drawing:


1705908635815754


Outdoor LED Sign Modules Specifications:

ModelMH-E2Moq200
ManufacturerMengHaoPiece Weight0.007
Country Of OriginChinaSize50*17mm
Lamp Bead Type3030Center Distance204mm
Lamp Bead Amount2PCSBead Distance20mm
Level Of ProtectionIP65Wire Length155mm
Luminance145lmLinear Diameter0.57mm
Brightness Per Watt145lmEach String/One20
Voltage12VPackage/Piece200
Power1WGuarantee Period3 Years
Illuminance4550Cases/PCS3000
Irritation Angle170°Case/Weight21.4kg
ColourW/CWCarton Size51*36*29.5CM
Color Temperature2800-15000KLumen Depreciation<6%
Wire Diameter0.26mm²Life Time50000


Advantages of Outdoor LED Sign Modules

  • Durability: LED sign modules are designed for outdoor use and can withstand extreme weather conditions such as moisture, precipitation, wind and UV rays. They are constructed of sturdy materials and tightly sealed to prevent any water penetration and guarantee reliable performance in all climates.

  • Long life: The life of a general LED display module is usually tens of thousands of hours of continuous operation. This enhances its usability, thereby minimizing the frequency with which it must be replaced, while also reducing the maintenance costs associated with outdoor signage. These properties make them a viable lighting solution in the long run.

  • Energy Efficiency: Outdoor LED sign modules are highly energy efficient and consume much less electricity than traditional light sources such as neon or fluorescent lights. They convert most of the electrical energy into visible light, which means that such lights can provide an additional lighting concept without increasing your electricity bill.

  • Brightness and Visibility: LED sign modules emit bright, uniform illumination even during daylight hours or when ambient light intensity is high, ensuring visibility and legibility of outdoor signs. This way they can continue to engage customers effectively since they can be seen even from far away.

  • Customizable Design: Outdoor LED sign modules come in different shapes, sizes, and configurations so that users can customize their lighting design to their specific requirements or aesthetic preferences. Therefore, they can be integrated into different types of outdoor signs, providing a great deal of design freedom.

  • Instant On/Off: There is no warm-up time before the LED turns on; instead, it starts glowing immediately after power is applied. This means instant, reliable lighting no matter where you are outdoors, significantly increasing convenience.

  • Color Options: With a variety of colors to choose from, businesses have the opportunity to match their corporate style with outdoor signage and create jaw-dropping effects if desired. For example, RGB (red/green/blue) based lighting modules offer more options, allowing for greater visual impact with color dynamics rather than just static ones.

  • Low maintenance costs: LED sign modules require low maintenance costs compared to traditional lighting sources. They just need some cleaning and inspection from time to time as they are durable and very strong.

  • Environmentally Friendly: LED sign modules do not contain any harmful chemicals such as mercury and produce zero heat or emissions during their lifetime. At the end of their life cycle, these signs can even be recycled, reducing waste in the environment.



Application of Outdoor LED Sign Modules

  • Billboards and advertising displays: Outdoor LED display modules are widely used in large advertisements, digital displays, and billboards on highways, roadsides, and urban areas. With high illumination, drivers and pedestrians can see See. Day or night.

  • Building Facades and Signage: For brand logos, company names and sales information, LED signage modules can be used to display on building facades or outdoor signage. This helps illuminate buildings used for commercial purposes such as shops, offices, etc. thereby making them more visible and thereby enhancing their brand image.

  • Retail storefronts and shopping malls: Highlight store names, products available for sale and promotions in retail storefronts, shopping malls and commercial complexes; install outdoor LED display modules. Therefore, the increase in foot traffic leads to an increase in sales, thereby increasing the brand awareness of the retail business.

  • Entertainment Venues and Sports Venues: In sports venues, music venues or open spaces, event information is displayed on LED signage modules, including sponsor logos and advertising. During live events, they create dynamic signage displays to engage audiences, thereby enhancing the audience experience.

  • Transportation hubs and transfer stations: At transportation hubs such as airports, train stations, and bus terminals, outdoor LED sign modules can provide wayfinding information, departure schedules, including advertising information. This allows passengers to move easily through busy traffic environments, thereby enhancing communication between passengers.

  • Outdoor Digital Signage Network: Outdoor digital signage network utilizes LED signage modules located in public spaces such as city centers and tourist destinations. They also deliver real-time information, news updates and advertising campaigns, thereby increasing public engagement.

  • Outdoor Retail and Restaurant Signage: Outdoor retail signage uses LED sign modules, while restaurant menus or storefront displays promote special offers to customers. These visually appealing signs play an important role in overcrowded places such as city centers or pedestrian areas.

  • Outdoor Events and Festivals: Where there are outdoor events, festivals and concerts; LED sign modules typically display the event's branding, sponsor information and directional signs. This provides a non-rigid signage solution for temporary facilities and outdoor venues.

  • Public Safety and Emergency Messaging: In open areas, LED sign modules are also used for public safety messaging, emergency alerts, and traffic advisories. This is to inform the public in real time during emergencies such as disasters or evacuation procedures.

  • Tourist Attractions and Landmarks: Outdoor LED sign modules can be found at tourist attractions, landmarks and cultural sites, providing visitors with information, historical narratives and interactive experiences. This improves the visitor experience, thus promoting tourism in open-air environments.



Outdoor LED Sign Modules FAQ

What is an outdoor LED display module?

Outdoor LED sign modules are specialized lighting fixtures designed specifically for outdoor signage applications, providing bright and long-lasting illumination.


How does the outdoor LED display module work?

Outdoor LED sign modules use light emitting diodes (LEDs) mounted on circuit boards to provide bright and even lighting for outdoor signs such as channel letters, light boxes and billboards.


What types of signs can outdoor LED display modules illuminate?

Outdoor LED sign modules can illuminate various types of signs, including channel letters, light boxes, tower signs, cabinet signs, billboards and architectural signs.


Are outdoor LED display modules waterproof?

Yes, outdoor LED sign modules are designed to be waterproof or weather-resistant, allowing them to withstand the effects of rain, snow, moisture, and other outdoor elements.


Are outdoor LED display modules energy efficient?

Yes, outdoor LED sign modules are highly energy efficient and consume significantly less power than traditional lighting sources while providing bright, even illumination.


Is it easy to install outdoor LED display module?

Yes, outdoor LED sign modules are designed for easy installation, with options for adhesive backing, screw mounting or snap-in mounting depending on the application.


How long is the service life of outdoor LED display modules?

Outdoor LED sign modules have a long lifespan, typically lasting 30,000 to 100,000 hours or more, depending on the quality of the LED and operating conditions.


Can outdoor LED display modules withstand extreme temperatures?

Yes, outdoor LED sign modules are designed to withstand a wide range of temperatures, from hot summer days to cold winter nights, without compromising performance.
