LED channel letter modules will help you increase the visibility of your brand because they can be used in various ways like retail shops, hotels or other commercial circumstances where signs are required. China LED Luminous Character Module Manufacturer Light boxes with side heights between 4cm-15cm can take it up.
  • Product Information

LED channel letter modules are special lighting assemblies used to light up the channel letters on a sign. They are custom made for precision and fit perfectly into characters to ensure uniform and lively lighting. These use LED technology that is very efficient in terms of energy offering bright light which lasts long .Modular designs make it easy to install and adapt them; hence, preferable for making signs that catch attention easily from others. LED channel letter modules will help you increase the visibility of your brand because they can be used in various ways like retail shops, hotels or other commercial circumstances where signs are required. China LED Luminous Character Module Manufacturer Light boxes with side heights between 4cm-15cm can take it up.


1705905009242198

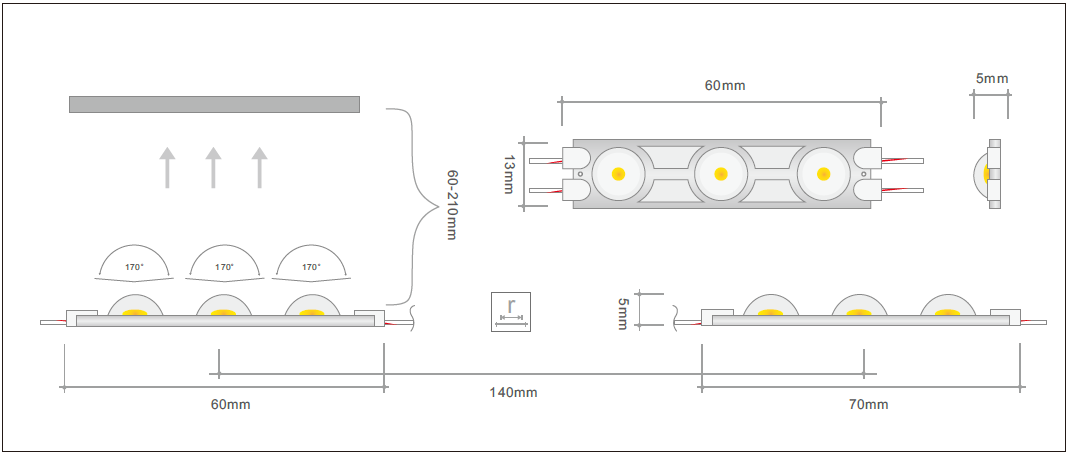

LED Luminous Character Module Size Drawing:

1705905360310046


LED Luminous Character Module Specifications:

ModelMH-B3Moq200
ManufacturerMengHaoPiece Weight0.006
Country Of OriginChinaSize45*15mm
Lamp Bead Type2835Center Distance156mm
Lamp Bead Amount2PCSBead Distance20mm
Level Of ProtectionIP65Wire Length108mm
Luminance85lmLinear Diameter0.48mm
Brightness Per Watt130lmEach String/One20
Voltage12VPackage/Piece200
Power0.72WGuarantee Period3 Years
Illuminance3250Cases/PCS3000
Irritation Angle165°Case/Weight19kg
ColourW/CWCarton Size51*36*29.5CM
Color Temperature2800-15000KLumen Depreciation<6%
Wire Diameter0.26mm²Life Time50000

Advantage of LED Luminous Character Module

  • Instant On and Flicker-Free Operation: LED, upon being switched on, light up immediately without any warm-up period; it also means that they provide flicker-free illumination which is essential for visual comfort and smooth operation of signage.

  • Color Options and Customization: The LED luminous character modules are available in different colors and color temperatures including RGB options to offer dynamic lighting effects. This thus allows for creative and customizable signage designs that suit branding requirements.

  • Environmental Benefits: Because it does not contain hazardous substances like mercury, unlike traditional lighting sources, LED technology is environmental friendly. Moreover, carbon emissions emitted from LED lights are lower than those of conventional ones; they can also be recycled once they reach the end of their life cycle.

  • Low Maintenance: Minimum maintenance requirements of these products mean there will be minimal periods of downtime associated with servicing signage. In this regard, if a company or an organization wants to purchase long lasting reliable sign-lighting systems at reasonable prices the product is efficient in terms of cost.

  • Safety: Since the modules operate on low voltage as well as generate very little heat, this enhances safety in areas where both indoor and outdoor applications are concerned. Therefore, one can use them in public spaces such as retail environments where human beings are often found around signs.


LED Luminous Character Module


Application of LED Luminous Character Module

  • Outdoor Billboards and Advertising: Large scale billboards, digital signage displays, promotional boards are some of the places where LED luminous character modules have been successfully applied in outdoor advertising. This enables them to have bright illumination which is highly visible on the advertising campaigns that they take part in.

  • Exhibitions and Trade Shows: Booth signage, backlit displays and promotional banners are among the most common uses of LED luminous character modules in exhibitions or trade shows. They draw attention, display products or services on offer as well as make visual impacts in exhibition stands.

  • Architectural Signage and Landmarks: To highlight architectural features like building names in urban landscapes alongside architectural signage that contributes to aesthetic appeal of urban spaces; LED luminous character modules can be embedded within such structures as building facades.


LED Luminous Character Module


LED Luminous Character Module FAQ

Can LED character modules be used for both indoor and outdoor signage?

Yes, LED character modules are designed to withstand outdoor conditions such as rain, snow, UV rays, and temperature fluctuations. They are sealed to prevent water intrusion and ensure reliable performance in both indoor and outdoor environments.


Can LED character modules be customized?

Yes, LED character modules are available in a variety of sizes, shapes, and colors to meet specific signage requirements. They can be customized with different fonts, letter sizes, colors, and lighting effects based on brand or design preferences.


What is the lifespan of LED character modules?

LED character modules have a long lifespan, typically 50,000 to 100,000 hours or more, depending on usage and environmental conditions. This long lifespan reduces the need for frequent replacement and maintenance.


Are LED character modules easy to maintain?

Yes, LED character modules require minimal maintenance due to their long lifespan and durable construction. Regular cleaning to remove dust and debris from the lens or housing helps maintain optimal performance and extend the life of the module.


Can LED character modules be dimmed or adjusted in brightness?

Yes, LED light-emitting character modules can be dimmed or adjusted using a compatible dimming controller or driver. This feature allows for flexible control of the brightness level of the sign based on ambient light conditions or specific visual requirements.


What safety issues need to be considered when using LED light-emitting character modules?

LED light-emitting character modules operate at low voltages and generate minimal heat, which enhances safety in indoor and outdoor applications. They are suitable for public venues, retail environments, and areas where signs are close to people and do not pose a safety hazard.
