1PCS Lamp Bead Small LED Module
  • 1PCS Lamp Bead Small LED Module
  • 1PCS Lamp Bead Small LED Module
  • 1PCS Lamp Bead Small LED Module
1PCS Lamp Bead Small LED Module
1PCS Lamp Bead Small LED Module
1PCS Lamp Bead Small LED Module

1PCS Lamp Bead Small LED Module

The small LED module is a compact lighting unit designed for diverse applications. With its diminutive size, it offers versatility in installations where space is a constraint. Despite its size, this module delivers efficient and uniform illumination, making it suitable for accent lighting, displays, and various compact settings.
  • Product Information

The small LED Module is a small-sized illumination unit made for various purposes. In spite of its tiny form, it can be mounted anywhere there is no space. Still, the module’s small size doesn’t stop it from producing concentrated light that makes it perfect for accent lighting, displays and all types of small environments. Its compactness allows unobtrusive placement into signage, retail displays and other decorative elements. The little LED module is easy to install and has low energy consumption; thus, it is a perfect solution for achieving directed functional and pleasing visual effects in limited spaces. China Small LED Module Manufacturer It is suitable for light box with side height of 4cm-8cm.

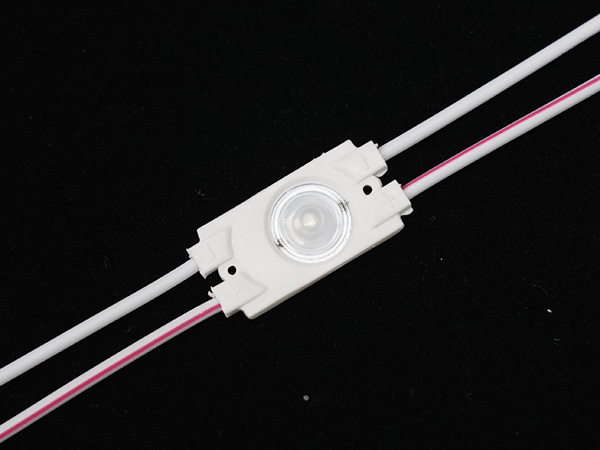

1705905959694913

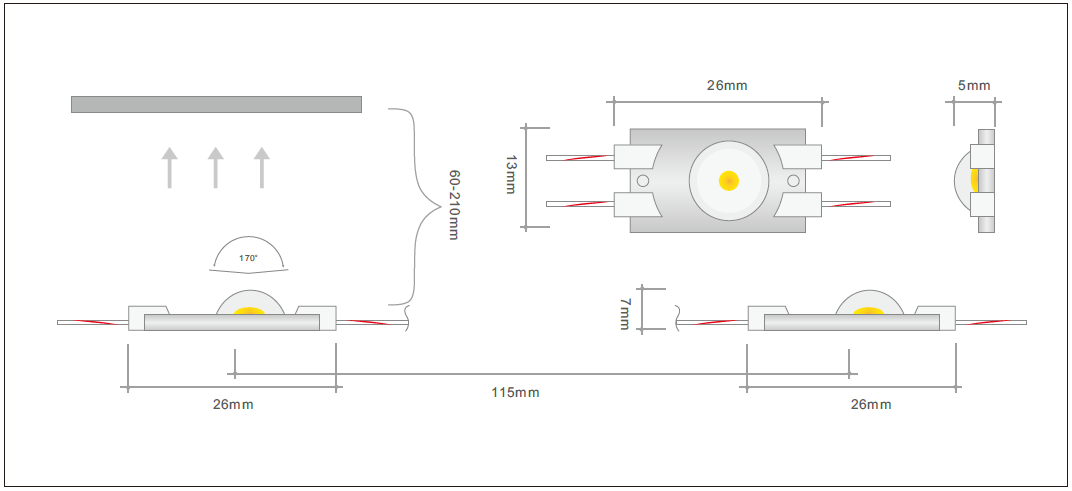

Small LED Module Size Drawing:

1705905847261381


Small LED Module Specifications:

ModelMH-B1Moq200
ManufacturerMengHaoPiece Weight0.004
Country Of OriginChinaSize26*13mm
Lamp Bead Type2835Center Distance115mm
Lamp Bead Amount1PCSBead Distance/
Level Of ProtectionIP65Wire Length80mm
Luminance30lmLinear Diameter0.48mm
Brightness Per Watt60lmEach String/One20
Voltage12VPackage/Piece200
Power0.5WGuarantee Period3 Years
Illuminance3600Cases/PCS6000
Irritation Angle175°Case/Weight16kg
ColourW/CWCarton Size50*30*29CM
Color Temperature2800-15000KLumen Depreciation<6%
Wire Diameter0.185mm²Life Time50000

Advantage of Small LED Module

  • Multifunctionality: Small LED modules can be used in a variety of ways, such as signboards, retail displays, accent and decorative lighting for kitchens, cabinets etc. You are at liberty to design them in any way you like.

  • Instant On: LEDs are activated immediately they are switched on without waiting time. This is useful where applications demand rapid and immediate illumination.

  • Design Flexibility: The compact size and flexibility of LED modules make it possible to have personalized as well as innovative lighting solutions. These ones blend with different fixtures or get integrated into various configurations so as to produce specified forms of light.

  • Low Heat Emission: The amount of heat emitted by LEDs is considerably less compared to traditional sources. It will not only provide safety but also keep the environment comfortable specifically when enclosed areas.

  • Environmental Benefits: The long lifespan and energy efficiency of LED modules makes them eco-friendly. They contain nothing hazardous and can be reused again which helps sustain the environment.


Small LED Module

Application of Small LED Module

  • Task lighting: Includes desk lamps, reading lights and work station illumination to give focused light for precision clarity requiring tasks. It offers energy efficient solutions that are personal and professional as it is contained in small LED modules.

  • Automotive Lighting: Interior lighting, dashboard illumination, and accent lighting are some of the areas where automotive lighting may be integrated into a vehicle. Small LED modules can also help to make the space inside better looking as well as serve other purposes in automotive application.

  • Hospitality: Hotels, restaurants, bars use decorative lighting emphasizing architectural elements and creating mood-lighting. Contributing to the atmosphere alongside enhancing customer experience; this occurs via small LED modules.

  • Exhibitions & Events: Promotional materials highlighting such things like trade show booths, event displays or temporary installations require accent lighting. This feature denotes a good design since it enables one to come up with very flexible types of designs by employing LED modules which are smaller.

  • Outdoor Applications: Such fixtures utilized include path lights, garden lights and small-scale landscape in order to provide faint light and improve outdoor beauty of homes. The tiny-LED-module is not affected by climatic conditions due to its being resistant to weather elements.


Small LED Module


Small LED Module FAQ

How are small LED modules mounted?

The mounting method depends on the application, but typically involves mounting the module using adhesives, screws, or clips. They can be integrated into existing luminaires, embedded in surfaces, or used in custom structures to achieve the desired lighting effect.


Can small LED modules be dimmed or adjusted in brightness?

Yes, small LED modules can be dimmed or adjusted using a compatible dimming controller or driver. This feature allows for flexible control of light output based on ambient conditions or specific lighting requirements.


Are small LED modules suitable for outdoor use?

Yes, small LED modules designed for outdoor use are weather-resistant and can withstand moisture, dust, and temperature changes. They are sealed to prevent water intrusion and ensure reliable performance in outdoor environments.


What sizes and configurations are available for small LED modules?

Small LED modules are available in a variety of sizes and configurations to suit different applications. They range in length from a few centimeters to larger sizes suitable for specific lighting needs. Configurations include single-color and RGB options to provide a versatile lighting solution.


What is the lifespan of small LED modules?

Small LED modules have a long lifespan, typically 30,000 to 50,000 hours or more, depending on usage and environmental conditions. This long lifespan reduces replacement frequency and maintenance costs associated with lighting.


What are the maintenance requirements for small LED modules?

Due to their long lifespan and durable construction, small LED modules have minimal maintenance requirements. Regular cleaning to remove dust and debris from the lens or housing helps maintain optimal performance and ensure consistent light output.
