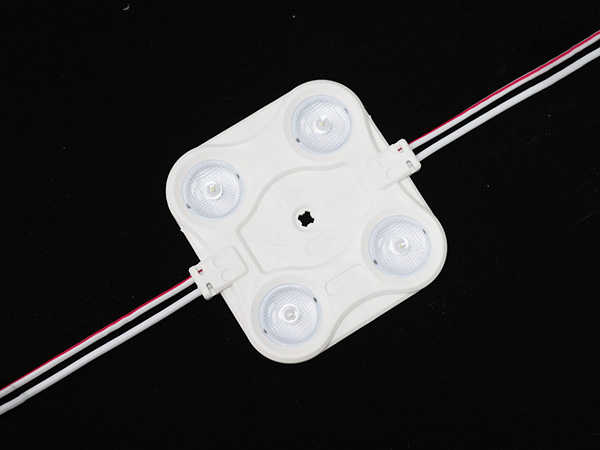

This specification details the MengHao MH-H4, a compact, high-output square LED Module designed for integration into custom lighting fixtures, signage, and architectural elements. This product provides designers and manufacturers with a reliable, high-quality light source component that simplifies assembly and ensures consistent performance.
Core Technical Specifications and Optical Performance
The module utilizes 4 high-quality 2835-type SMD LEDs, producing a total luminous flux of 620 lumens with a power consumption of 4W. This results in a high efficacy of 155 lumens per watt, indicating efficient energy conversion and reduced operational costs. The module operates on a low 12V DC input, ensuring safety and compatibility with standard LED drivers.
It offers an exceptionally wide color temperature range, from 2800K (warm white) to 15000K (cool white), providing unparalleled flexibility for applications requiring specific ambient lighting effects. The high Color Rendering Index (CRI) of 6500 ensures accurate and vibrant color representation, a critical factor for retail and display lighting. With a wide beam angle of 170 degrees, the module delivers broad, uniform illumination, minimizing hotspots and shadows.
Durability, Construction, and Integration
Built for longevity, the module is rated IP65 for ingress protection. This seal guarantees complete protection against dust and low-pressure water jets, making it suitable for both indoor and outdoor use. The construction is designed for effective thermal management, contributing to its minimal lumen depreciation of less than 6% and an extended rated lifetime of 50,000 hours.
The module is designed for easy integration. Its compact dimensions are 68*65mm with a center distance of 265mm, and it features a pre-attached wire length of 165mm with a 0.21mm² cross-section. These precise specifications allow for straightforward mechanical and electrical installation into larger systems. Modules are packaged 10 per string, with 100 pieces per inner package, streamlining the production process for manufacturers.
Application and Use Cases
The MH-H4 module is engineered for incorporation into a wide array of professional lighting products, including:
Custom Linear Fixtures: Ideal for creating continuous lines of light in coves, shelves, and architectural outlines.
Signage and Channel Letters: Provides bright, even backlighting for illuminated signs and commercial displays.
Task and Accent Lighting: Suitable for integrated lighting in furniture, display cases, and under-cabinet systems.
Outdoor Lighting Fixtures: Its IP65 rating allows for reliable performance in weather-resistant path lights, step lights, and landscape lighting.
The MengHao MH-H4 square led module represents a combination of high luminous efficacy, versatile color options, robust environmental protection, and a design optimized for manufacturing efficiency. If you are interested in our products, you are welcome to consult and learn more.
